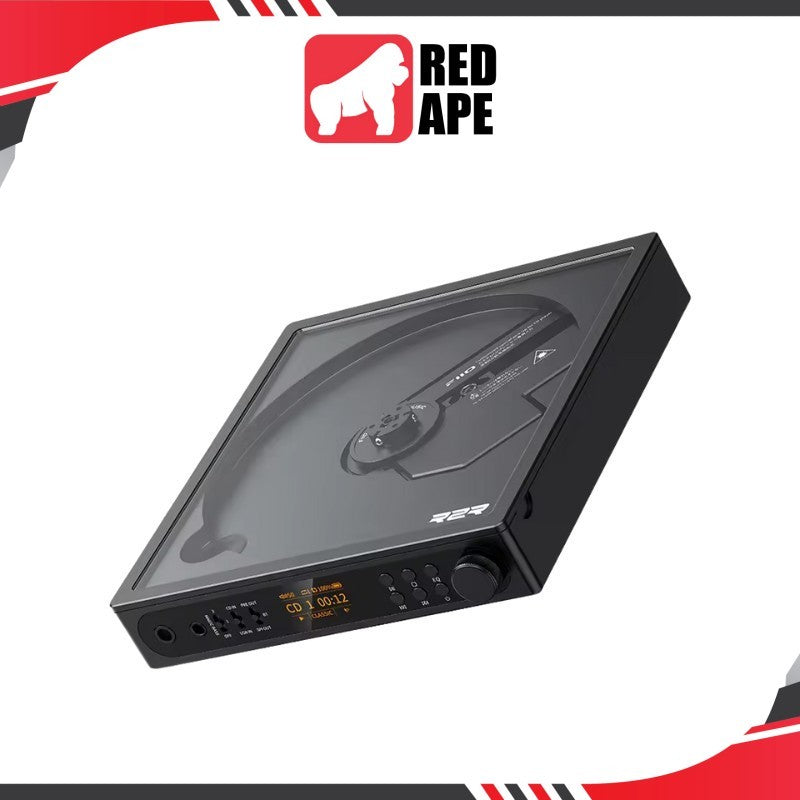

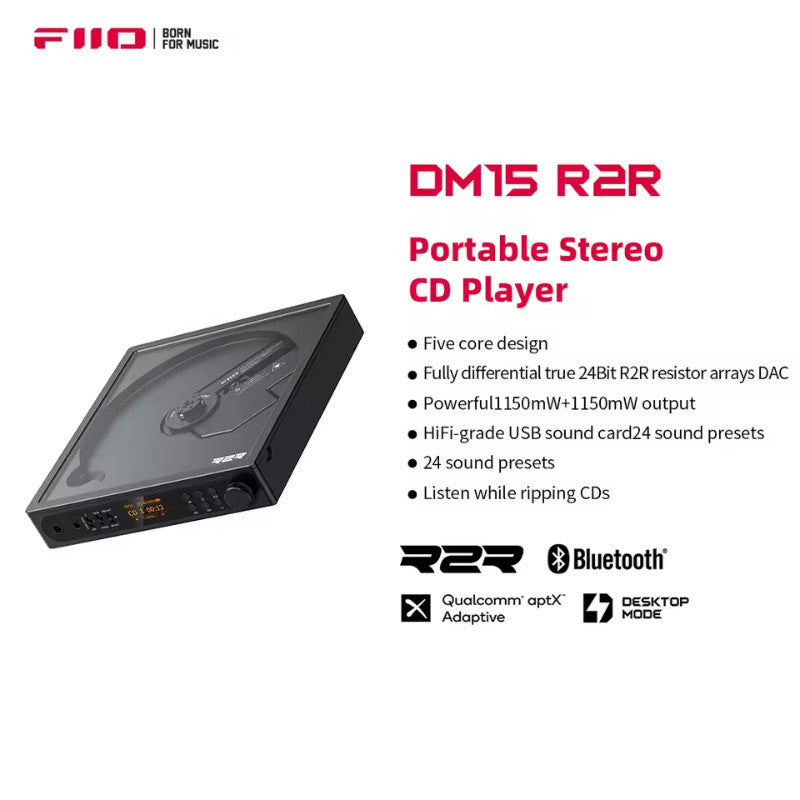

FiiO DM15 R2R, Portable Stereo CD Player: 5-Core Architecture 24Bit R2R High-Power Output CD Ripper Music Player
FiiO DM15 R2R, Portable Stereo CD Player: 5-Core Architecture 24Bit R2R High-Power Output CD Ripper Music Player
1-year local distributor warranty. Delivery options and charges are confirmed at checkout.
Ask our Puchong team about coverageFiiO DM15 R2R
Key Features:

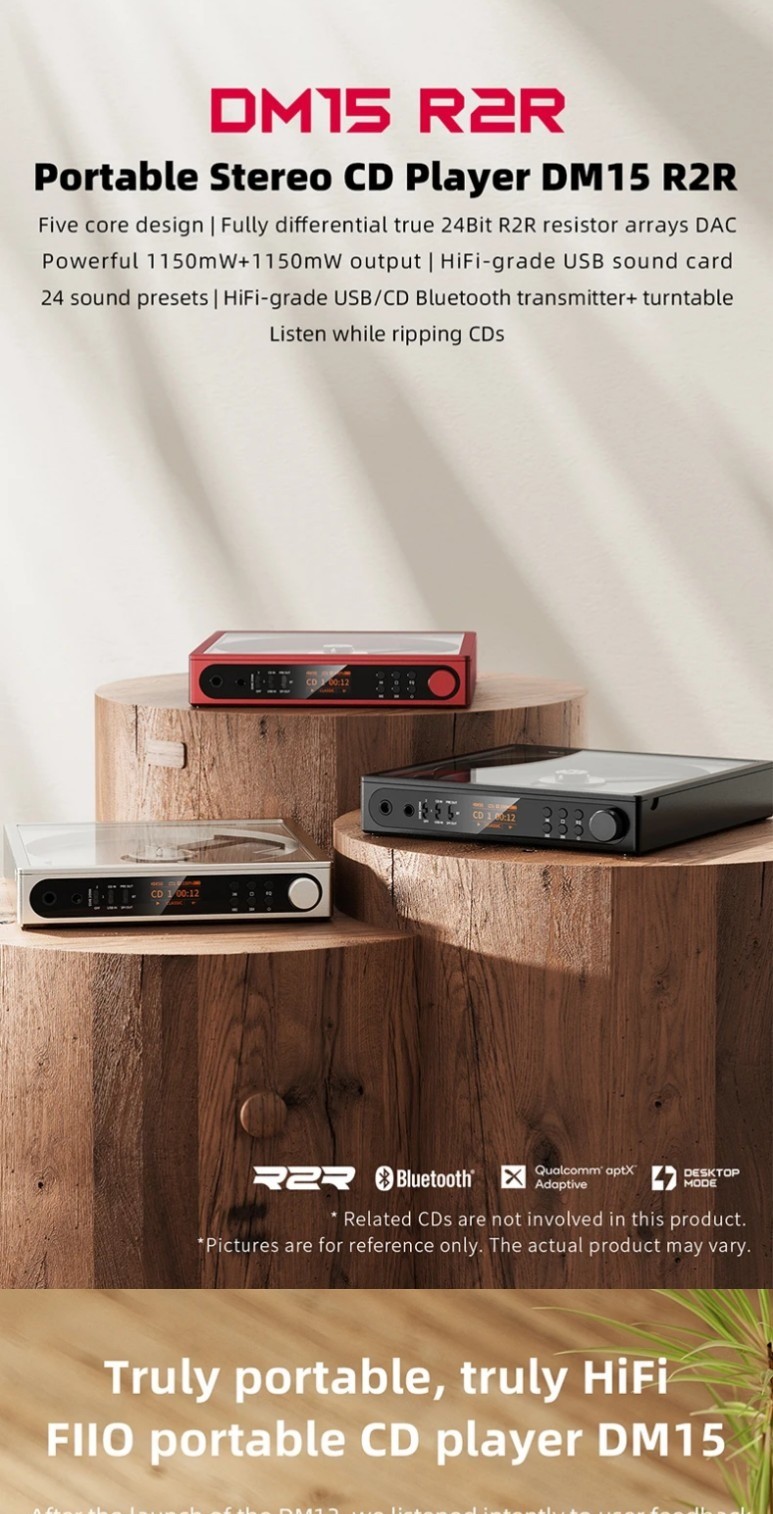

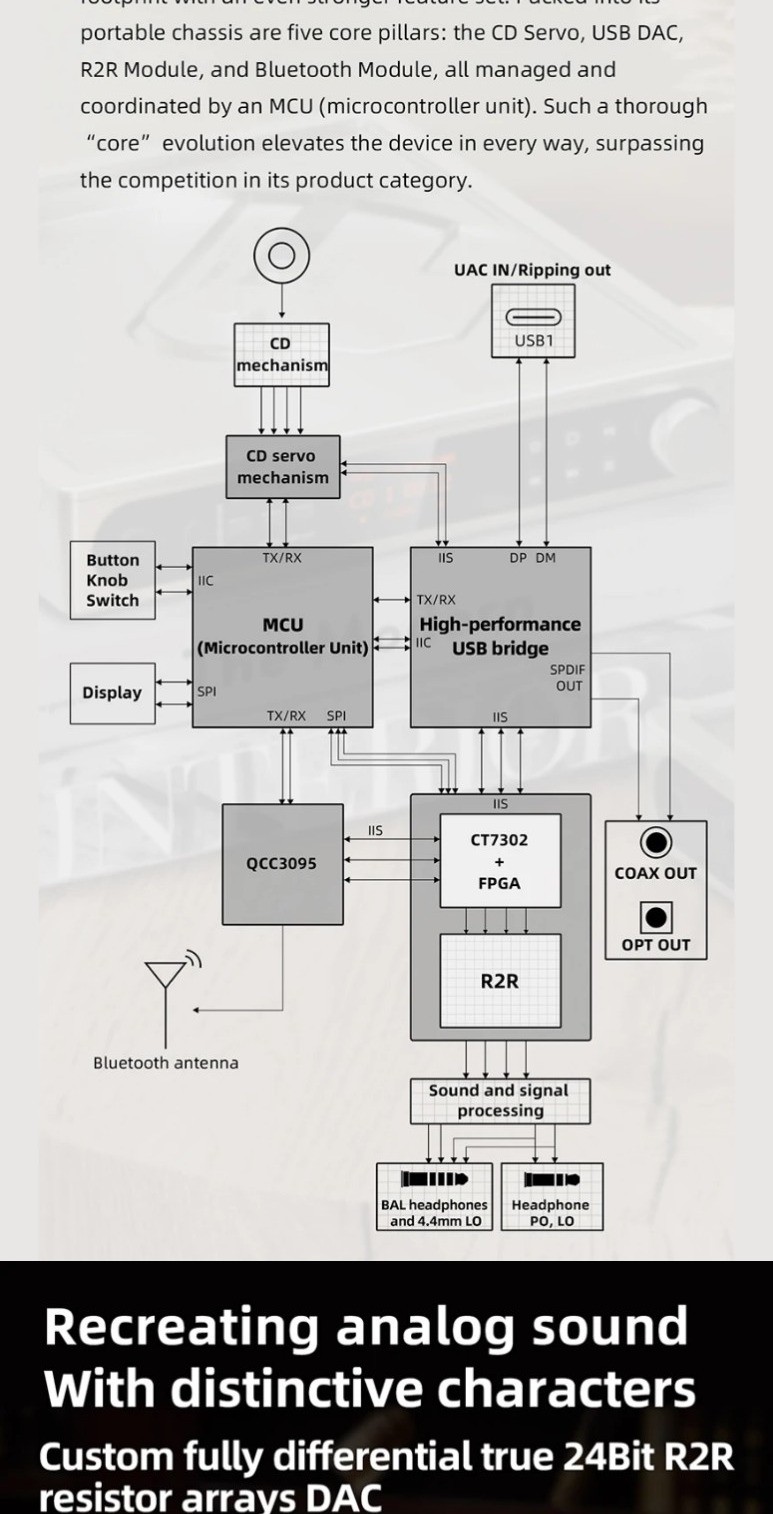

Fully Featured 5-Core Architecture
- Five Dedicated Processors: Features independent cores for CD servo, USB DAC, R2R DAC, Bluetooth, and a coordinating MCU for stable performance.
- Desktop & Portable Modes: Switch between high-power desktop mode (1,150mW balanced output) and battery-powered portable use.

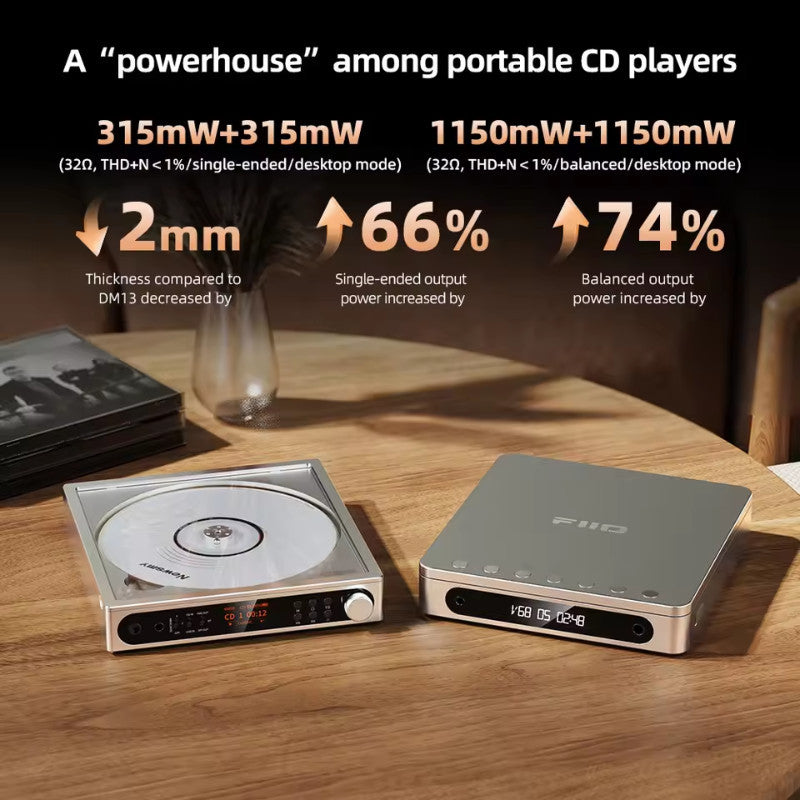

- High-Power Output: Delivers 310mW+310mW (single-ended) and 1,150mW+1,150mW (balanced @32Ω) for driving demanding headphones.
Advanced Sound Quality

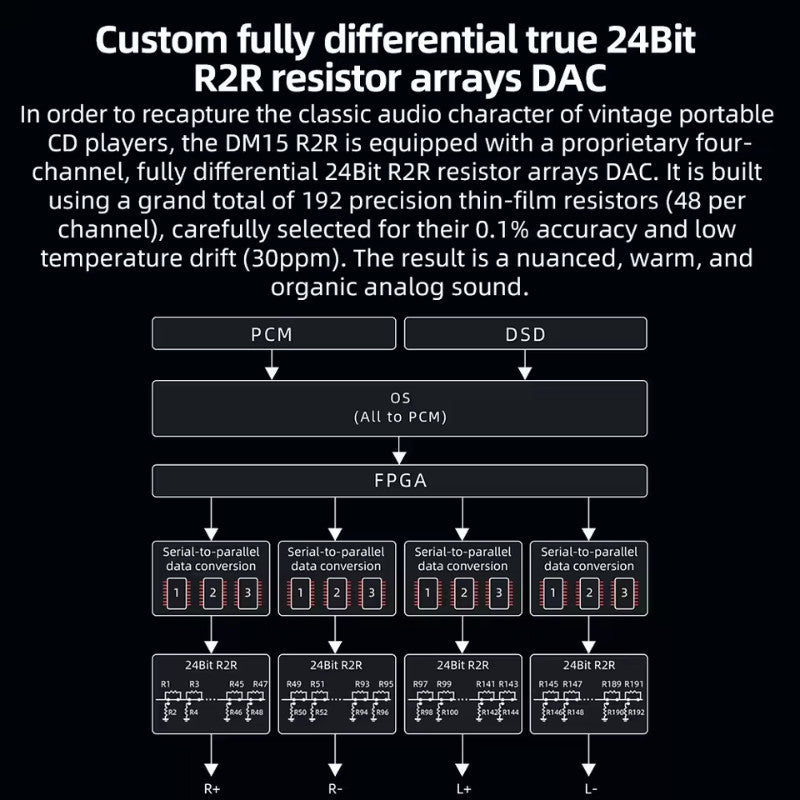

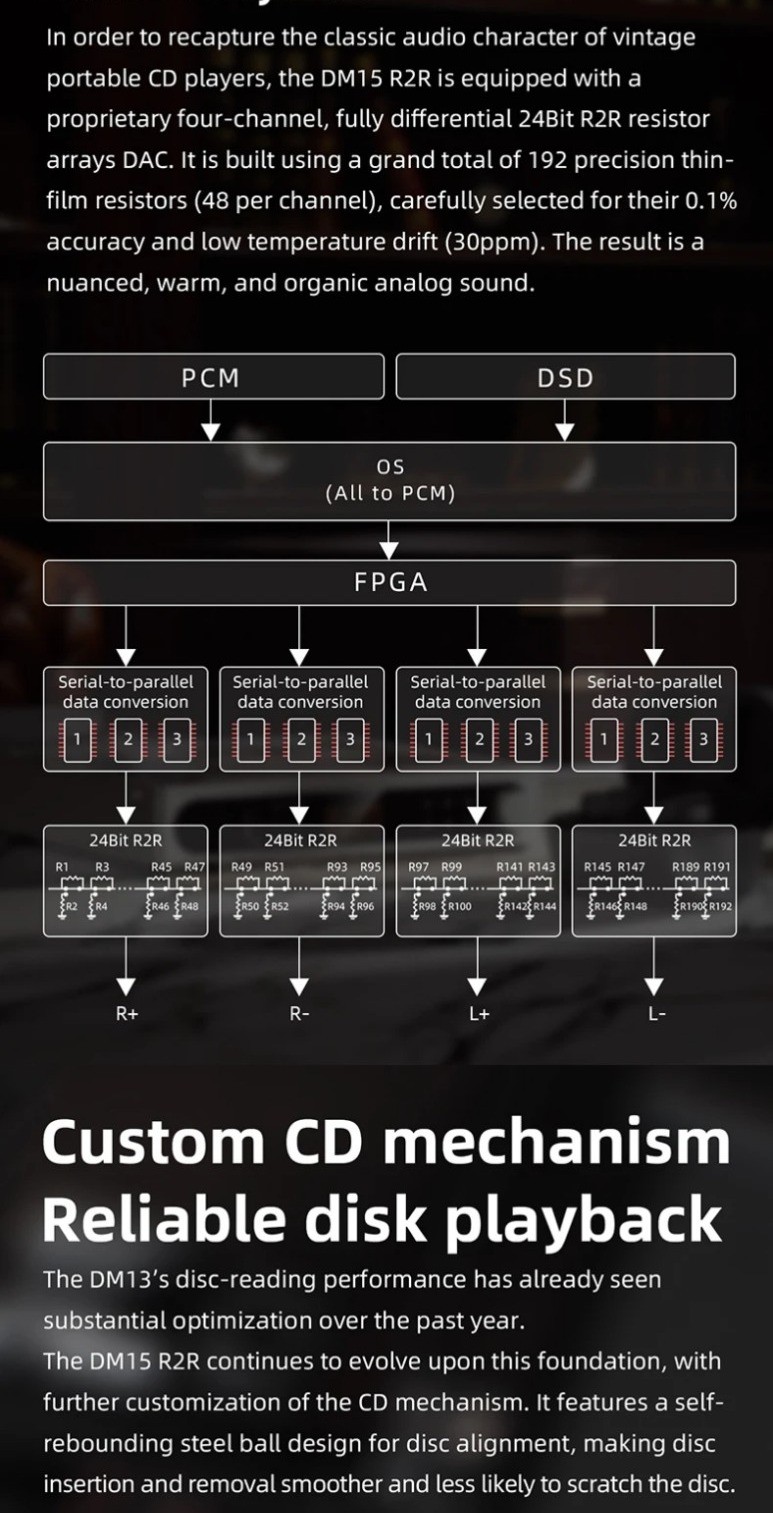

- Proprietary 24Bit R2R DAC: Utilizes FiiO's in-house, four-channel fully balanced R2R DAC made from 192 precision resistors for natural, warm, analog sound.

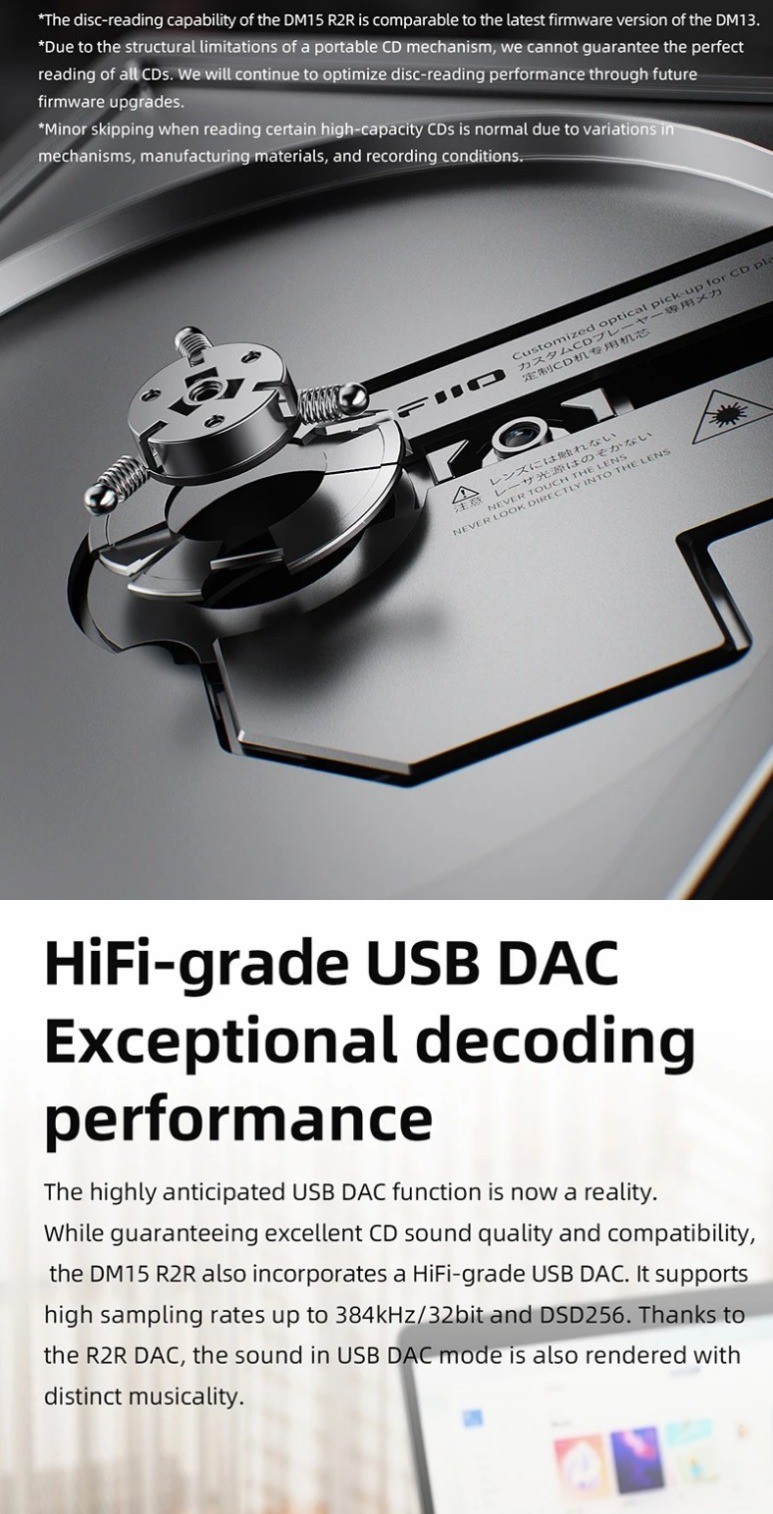

- USB Sound Card Function: Serves as a Hi-Fi USB DAC supporting up to 384kHz/32bit PCM and native DSD256 files.

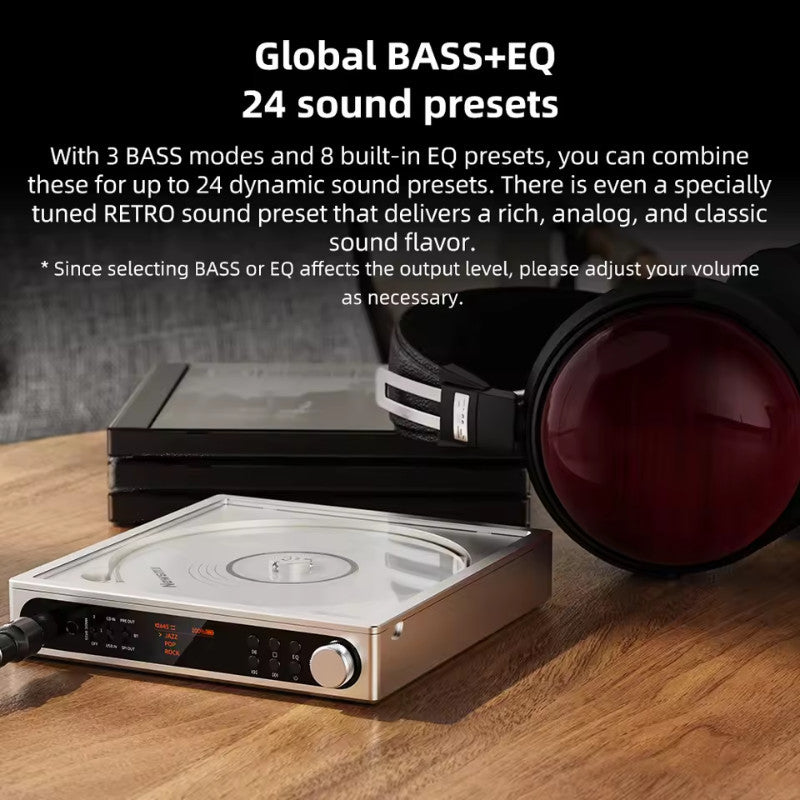

- Extensive Audio Enhancement: Offers 3 BASS modes, 8 EQ presets, and a dedicated RETRO mode for up to 24 customizable sound profiles.
Modern Digital Convenience
- CD Ripping (Grab Track): Rips audio from CDs in WAV format to a USB drive while listening.

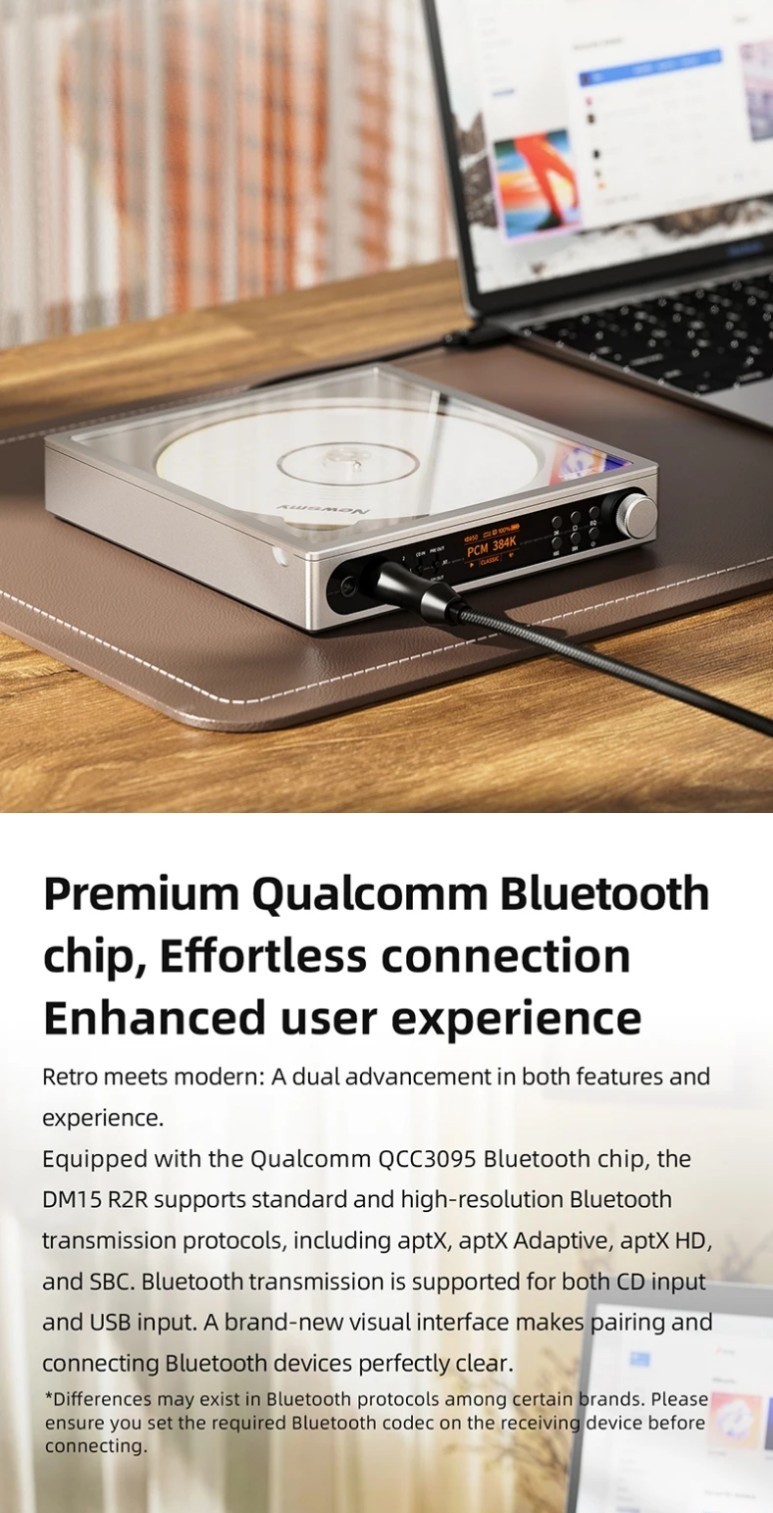

- High-Res Bluetooth Transmitter: Equipped with a Qualcomm QCC3095 chip supporting aptX, aptX HD, aptX Adaptive, and SBC for wireless audio streaming.

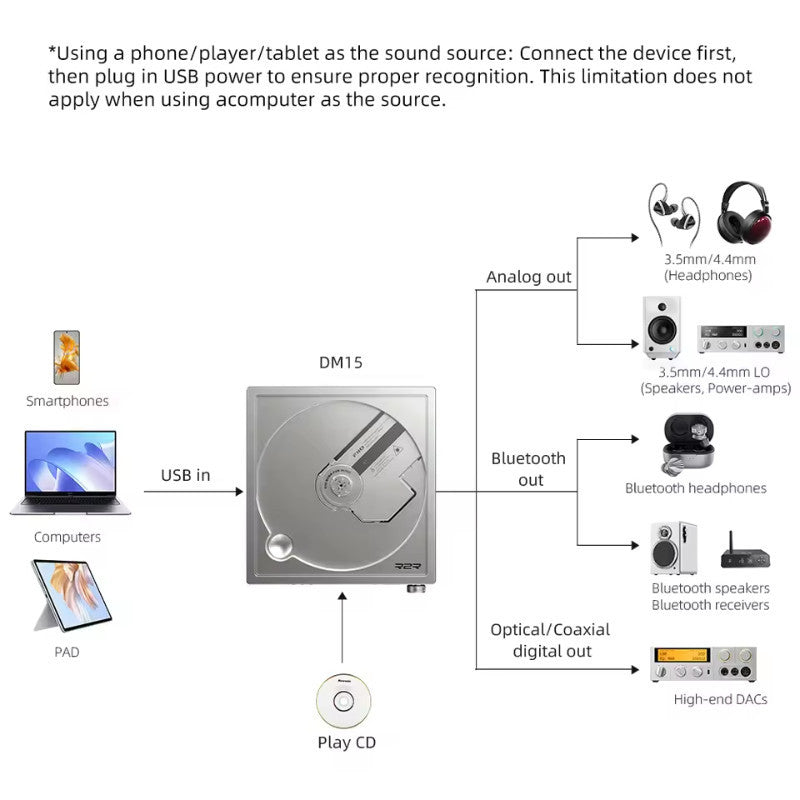

- Comprehensive Connectivity: Includes USB-C input, coaxial/optical digital outputs, and both 3.5mm and 4.4mm headphone jacks.
User-Friendly Retro Design

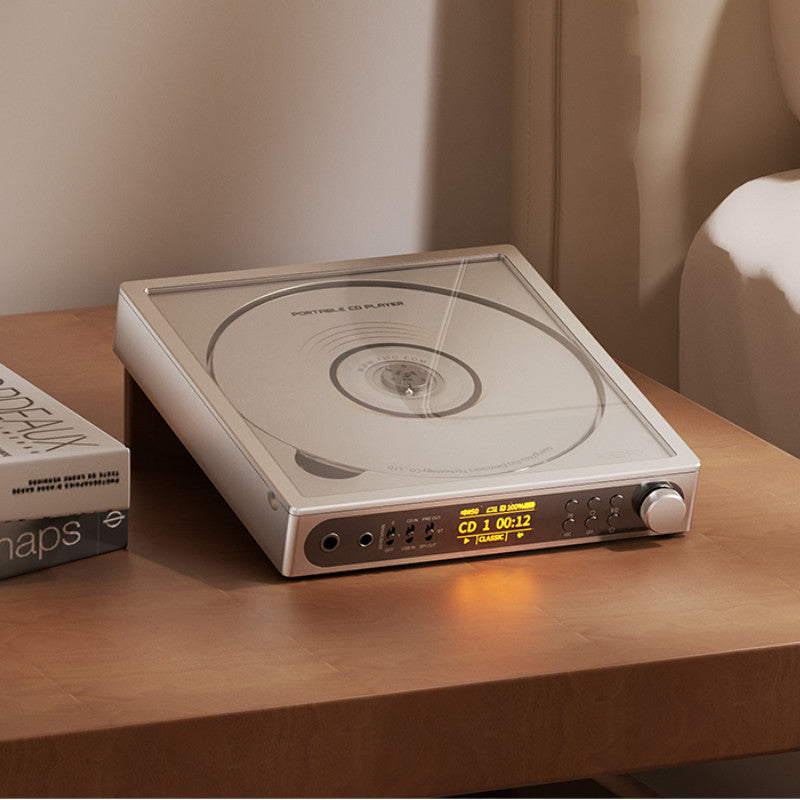

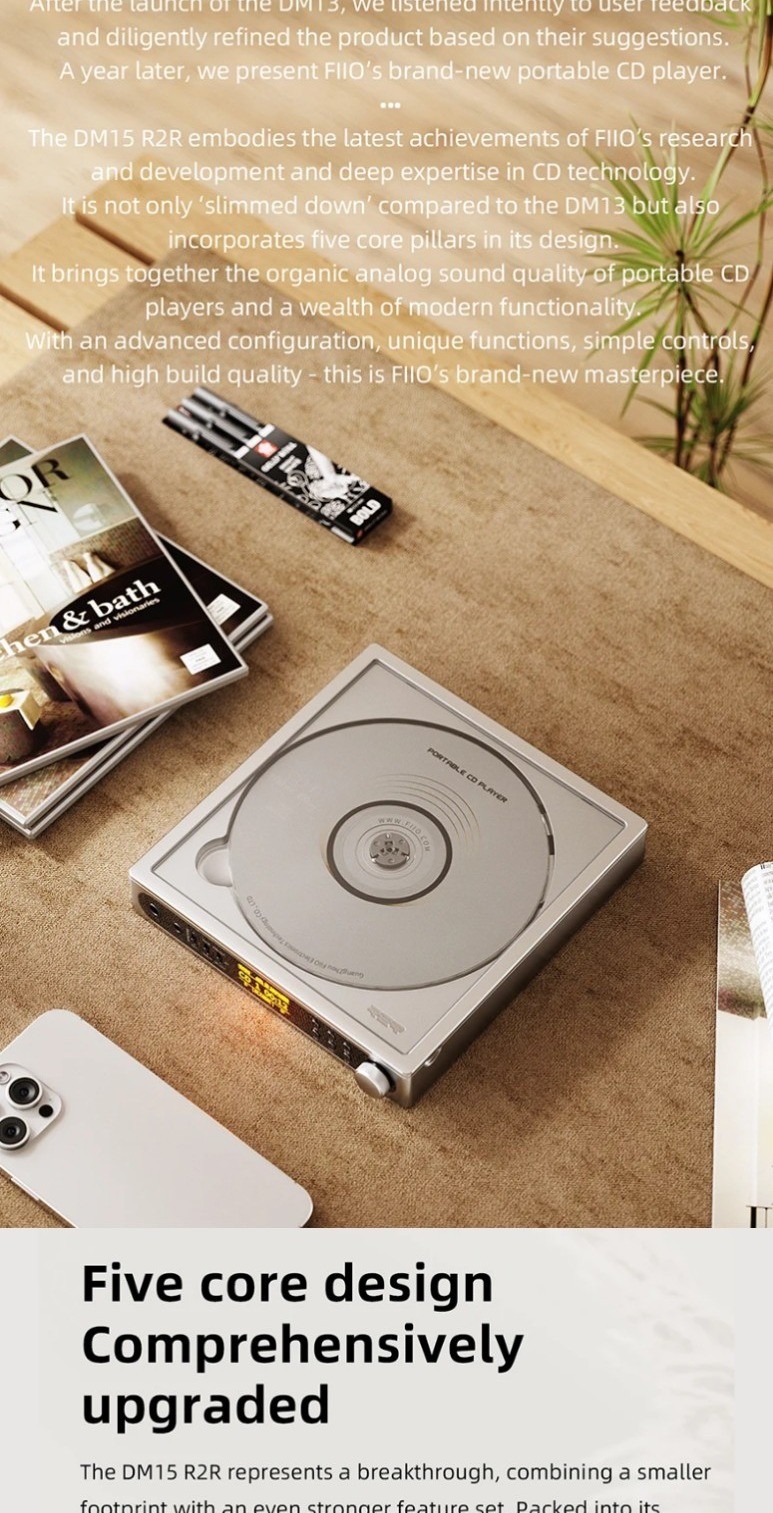

- Transparent Window & Aluminium Body: Features a durable all-aluminum alloy chassis with a tempered glass window to view the spinning CD.

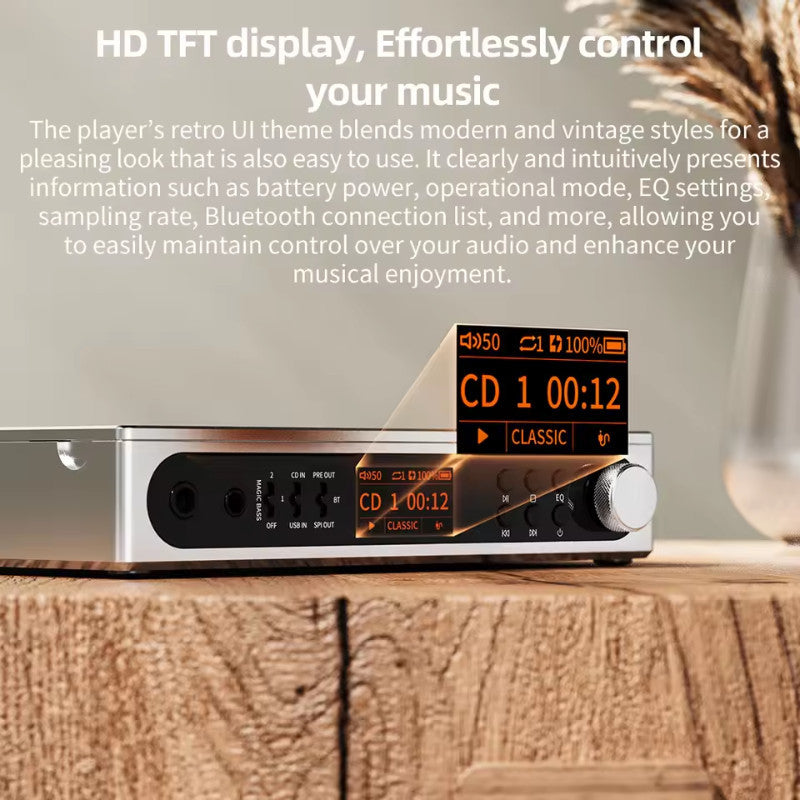

- Mechanical Controls & Display: Includes tactile buttons, a precise volume knob, and a 0.96-inch LCD/TFT screen for clear menu navigation.
- Infrared Remote Control: Comes with a remote for convenient operation from a distance.

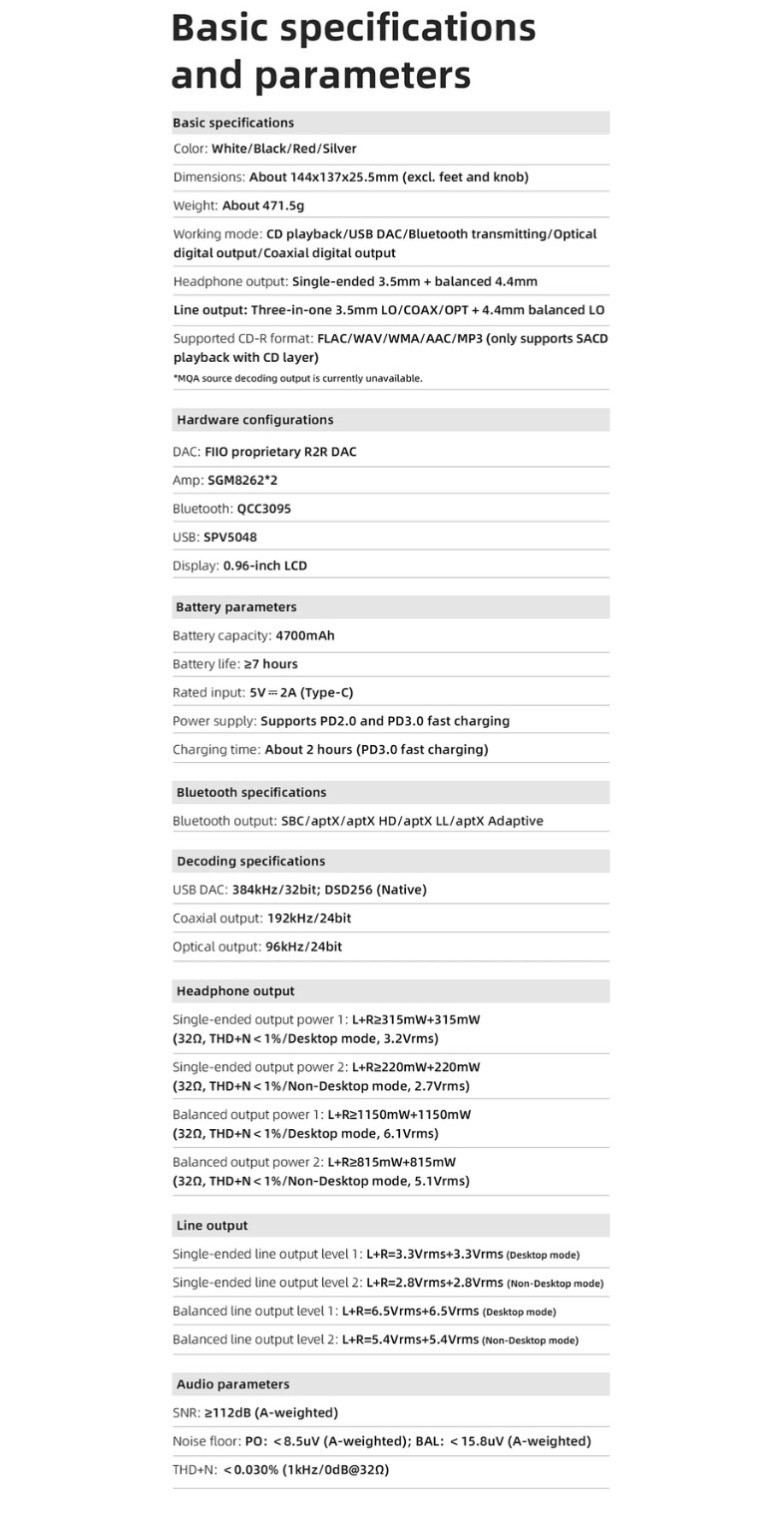

Technical Specifications:
- DAC: FiiO self-developed 24-bit R2R Resistor Ladder DAC
- Headphone Amplifier: SGM8262 × 2
- Output Power: Up to 310mW+310mW (Single-Ended), 1,150mW+1,150mW (Balanced @32Ω)
- Battery: 4700mAh high-voltage lithium (3.85V)
- Battery Life: ~7 hours (CD playback)
- Digital Inputs: USB-C (for DAC & charging)
- Headphone Outputs: 3.5mm (single-ended), 4.4mm (balanced)
- Other Outputs: 3.5mm (LO/Coaxial/Optical combo), 4.4mm balanced LO
- Supported File Formats: FLAC, WAV, WMA, AAC, MP3

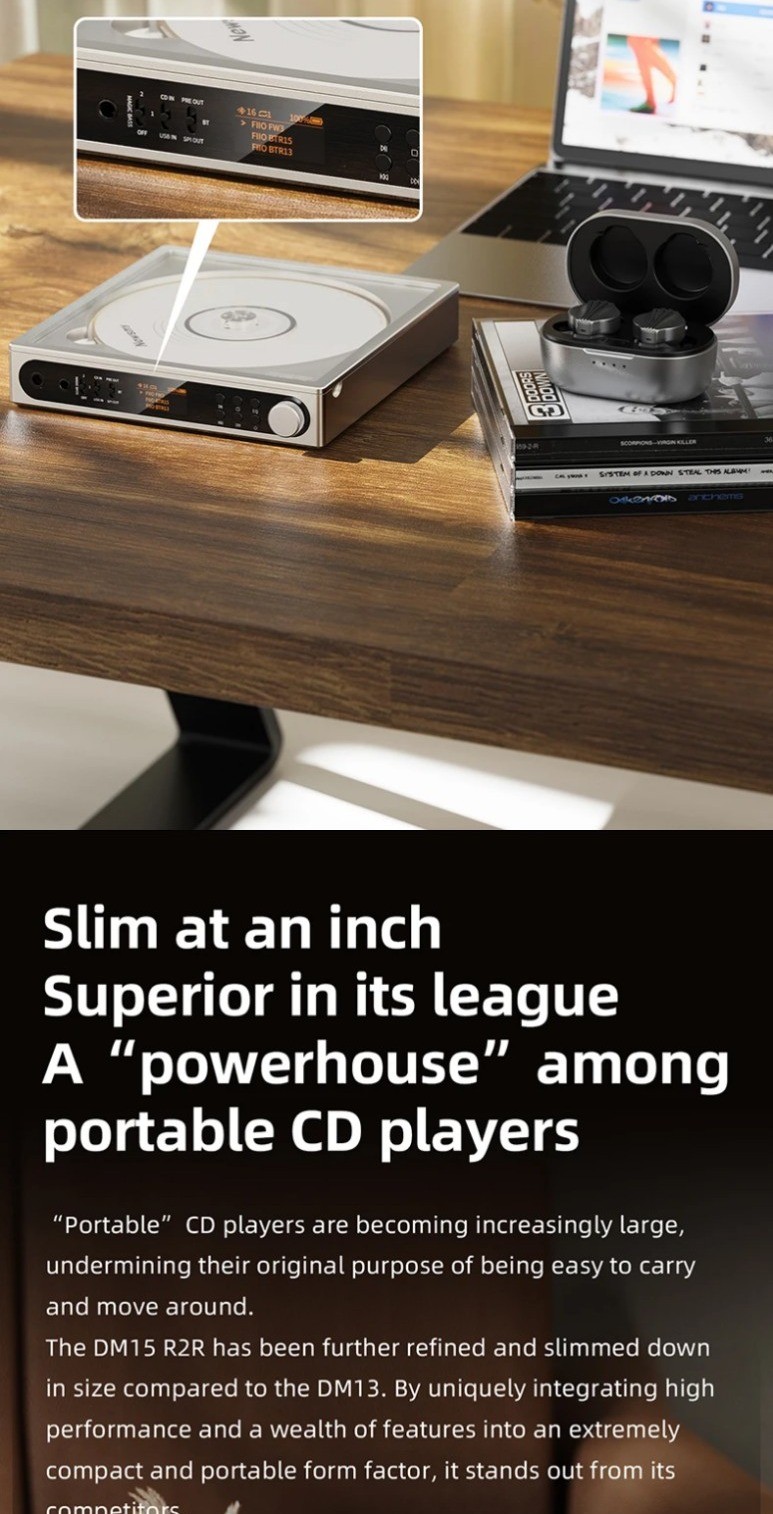

- Dimensions: ~144 × 137 × 25.5 mm
- Weight: ~471.5g

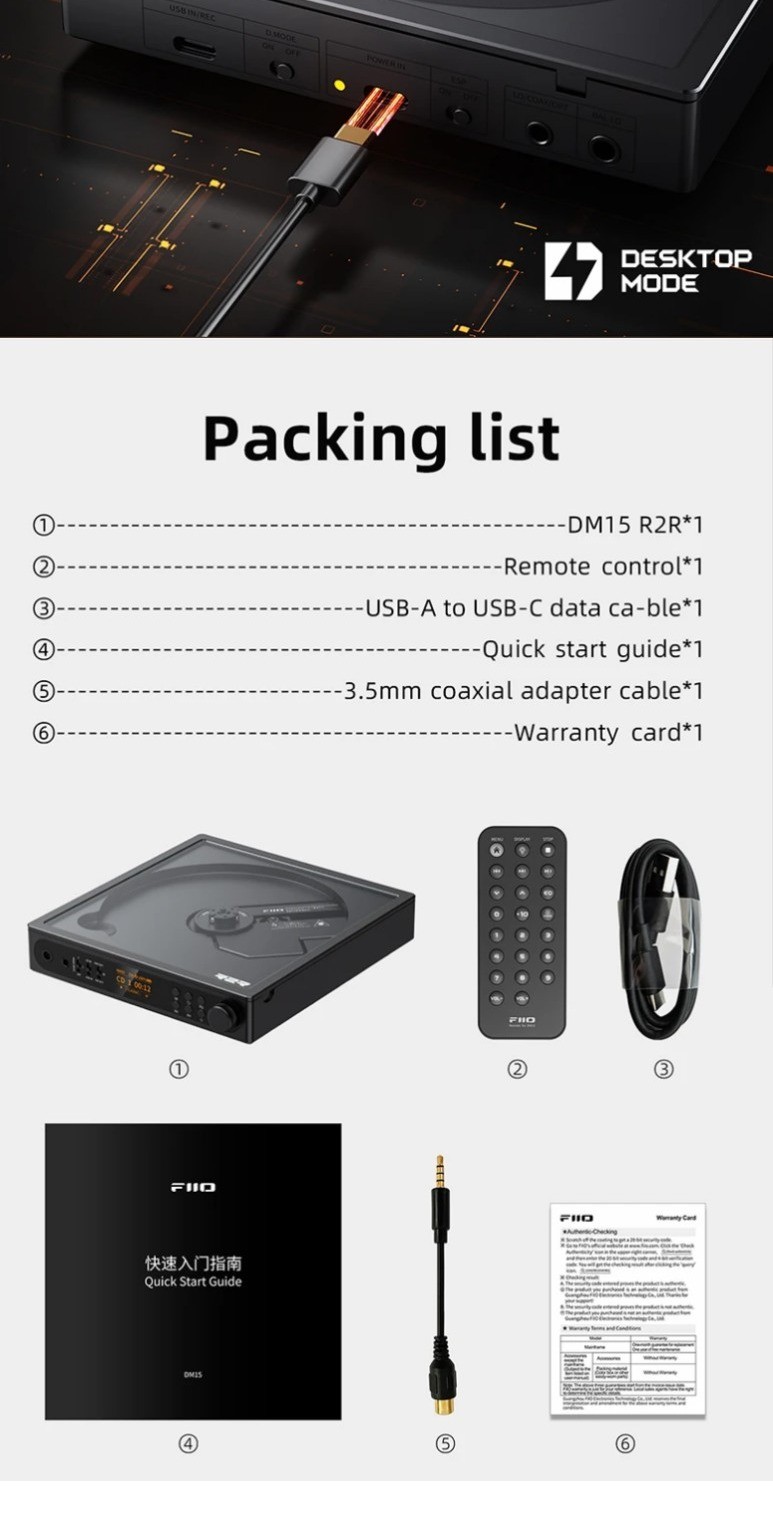

Package Includes:
- FiiO DM15 R2R Player
- Infrared Remote Control
- USB-A to USB-C Cable
- 3.5mm Coaxial Adapter Cable
- Quick Start Guide
- Warranty Card
Product & Local Support Details
Unsure about headphone impedance synergy, cable termination (3.5mm single-ended vs 4.4mm balanced), or desktop source pairing? Visit our Puchong showroom for an audition or message our audio specialists on WhatsApp (+60 11-5426 4995).
