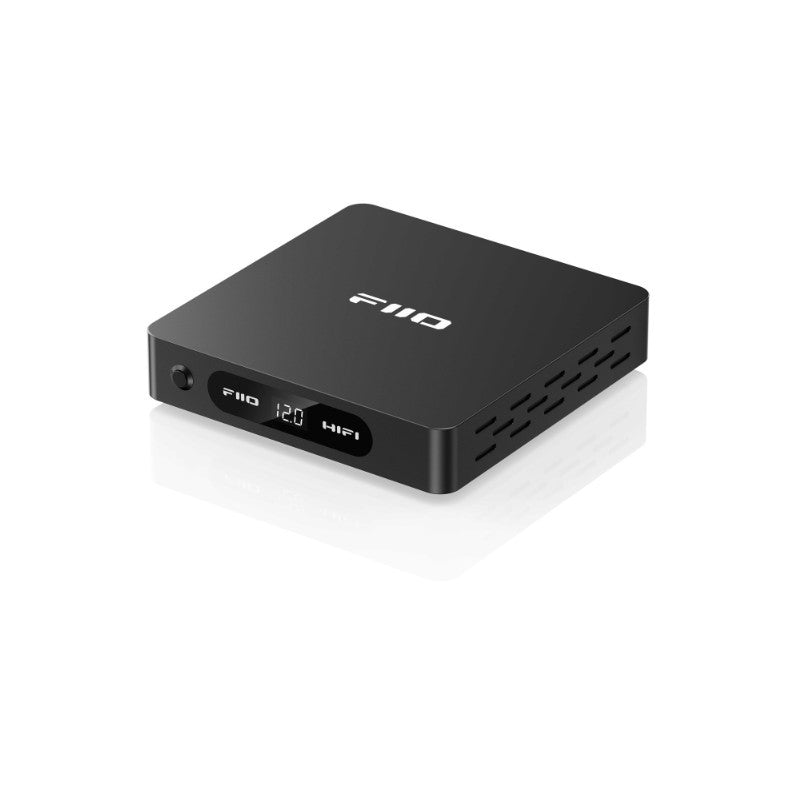

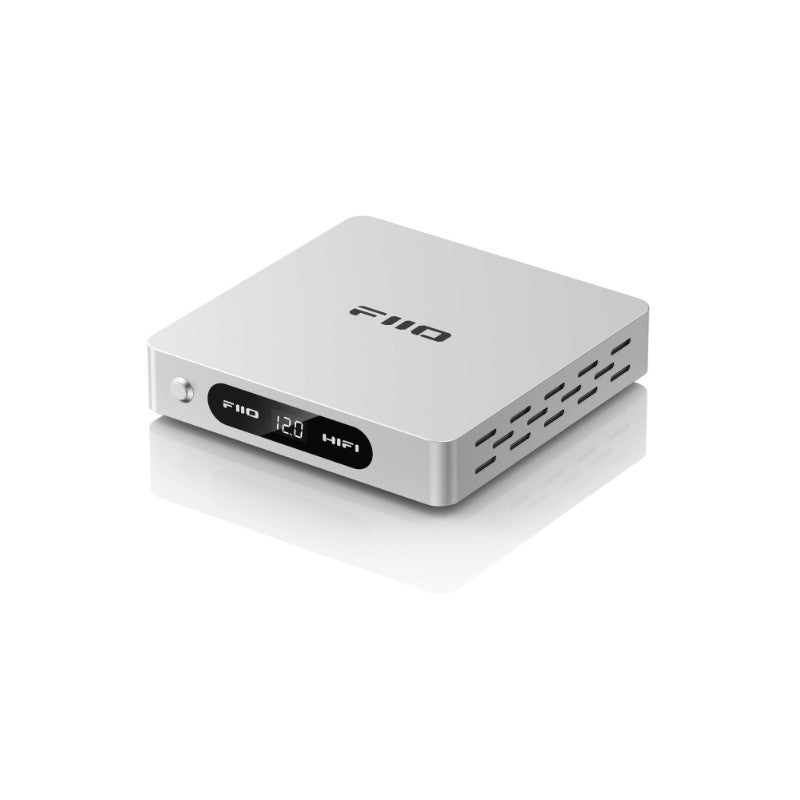

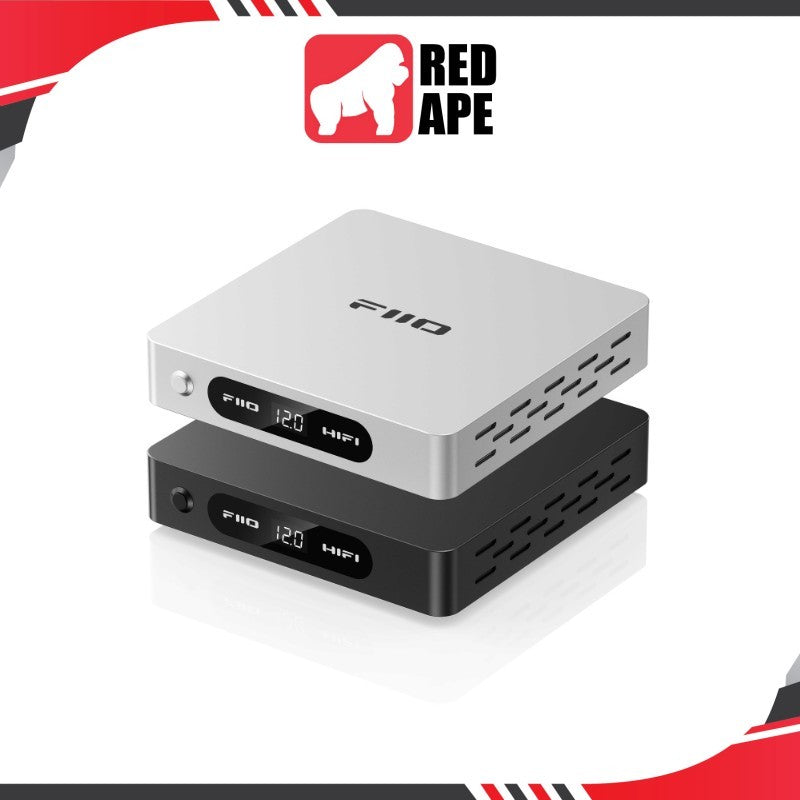

FiiO Darkside Pro, Power Amplifier: Low-Noise Regulated Linear 12V/15V Power Supply AMP (FiiO Darkside Pro)
FiiO Darkside Pro, Power Amplifier: Low-Noise Regulated Linear 12V/15V Power Supply AMP (FiiO Darkside Pro)
1-year local distributor warranty. Delivery options and charges are confirmed at checkout.
Ask our Puchong team about coverageFiiO Darkside Pro
Key Features
Audiophile-Grade 75W Toroidal Transformer
●Grain-oriented silicon steel circular core process for higher efficiency and minimized eddy currents.
●Seamless, fold-free coil design ensures uniform magnetic field and minimal magnetic leakage.
●75W reserve effortlessly handles high-dynamic transient demands.
●Delivers solid bass extension and vividly clear soundstage.
12V/15V Dual Voltage Support
●Relay-switched 12V/15V output for precise voltage matching.
●3A high current output for demanding audio equipment.
●Maximizes power efficiency and significantly reduces heat generation.
Fully Discrete Voltage Regulator Circuit
●Dual high-current IRFZ34NPBF MOSFETs in parallel configuration lowers internal resistance.
●Improved dynamic range ensures every nuance of audio is faithfully preserved.
●Dual-MOSFET parallel current amplification output.
Premium Audiophile Components
●Japanese Shinengen D15XB60 bridge rectifier with low heat generation and high stability.
●5 ELNA capacitors + 7 Rubycon filter capacitors effectively filter power supply noise.
●Mono-crystalline silver-plated copper DC cable reduces transmission loss and shields against EMI.
Precision Voltage Fine-Tuning
●Precision potentiometer for accurate voltage adjustment.
●Self-resetting fuse overcurrent protection for device safety.
Ultra-Silent Pitch-Black Background
●Low-noise regulated linear power supply design.
●Allows music to shine with clean, interference-free power delivery.
Technical Specifications
●AC Power Input Voltage: 220~240V / 100~120V
●DC Power Output Voltage: 12V / 15V (Relay-Switched)
●DC Power Output Current: 0~3A

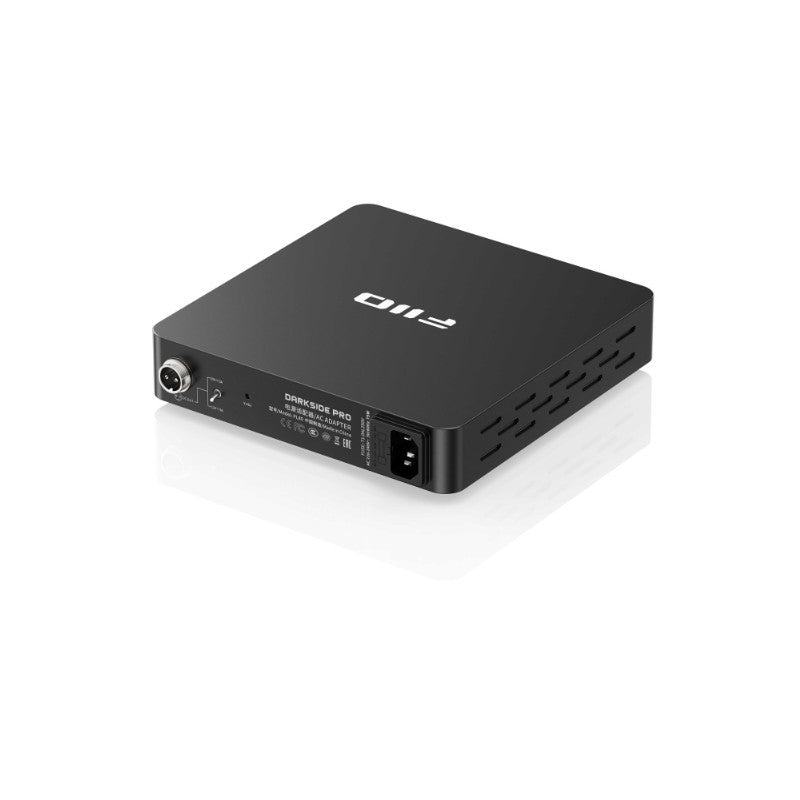

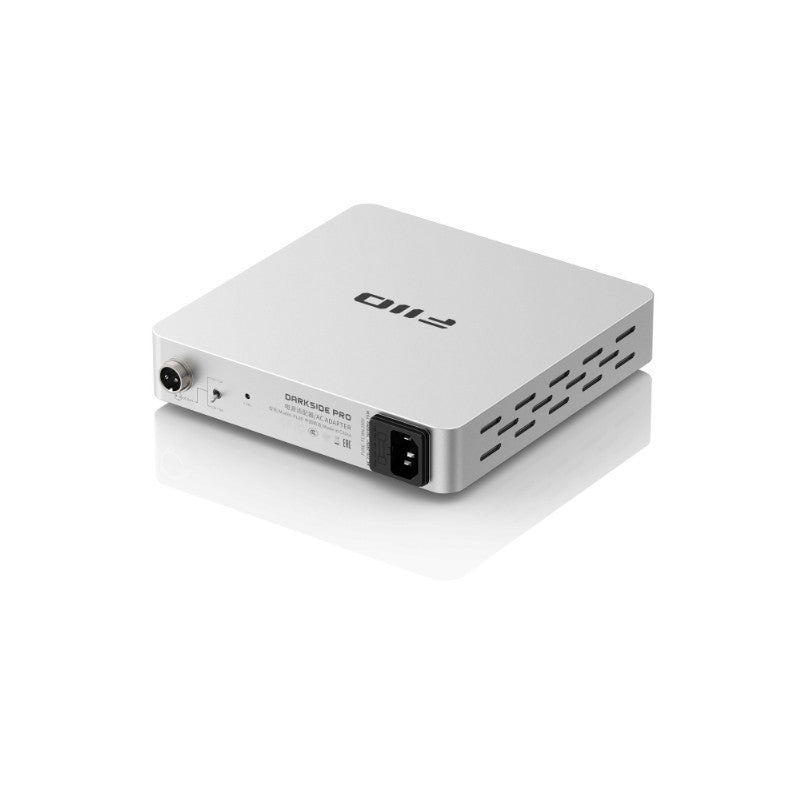

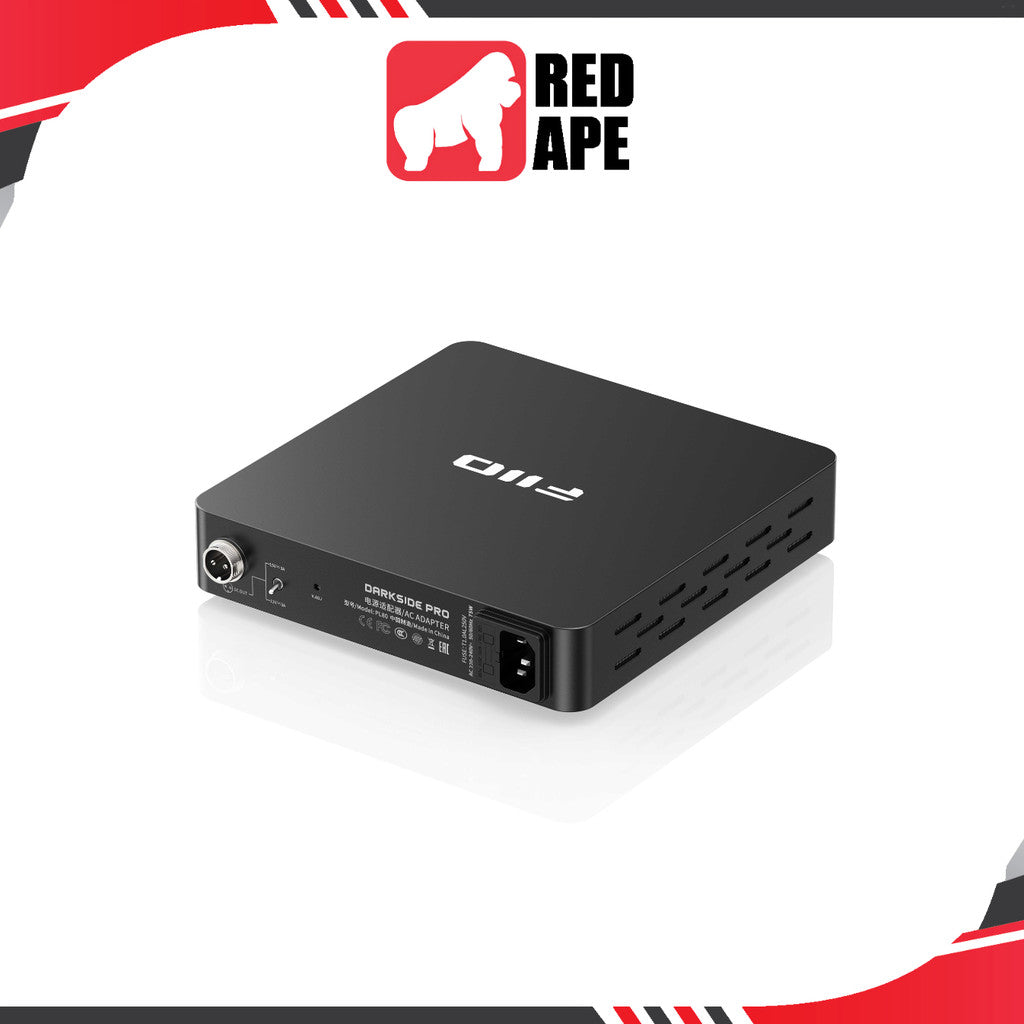

●DC Power Output Interface: GX16-2 Aviation Socket
●Dimensions: 7.40" × 7.40" × 1.67"
●Weight: 4.8 lbs
Compatible Devices
●FiiO K11, K11 R2R, K13 R2R, K15, K19, R9, R7, TT13
●K5 Pro series, K7 series, Q7
●All FiiO portable players using Type-C power supply
What's in the Box
●FiiO Darkside Pro
●DC Power Cord
●AC Power Cord
●Spare Fuse
●Quick Start Guide
●Warranty Card
