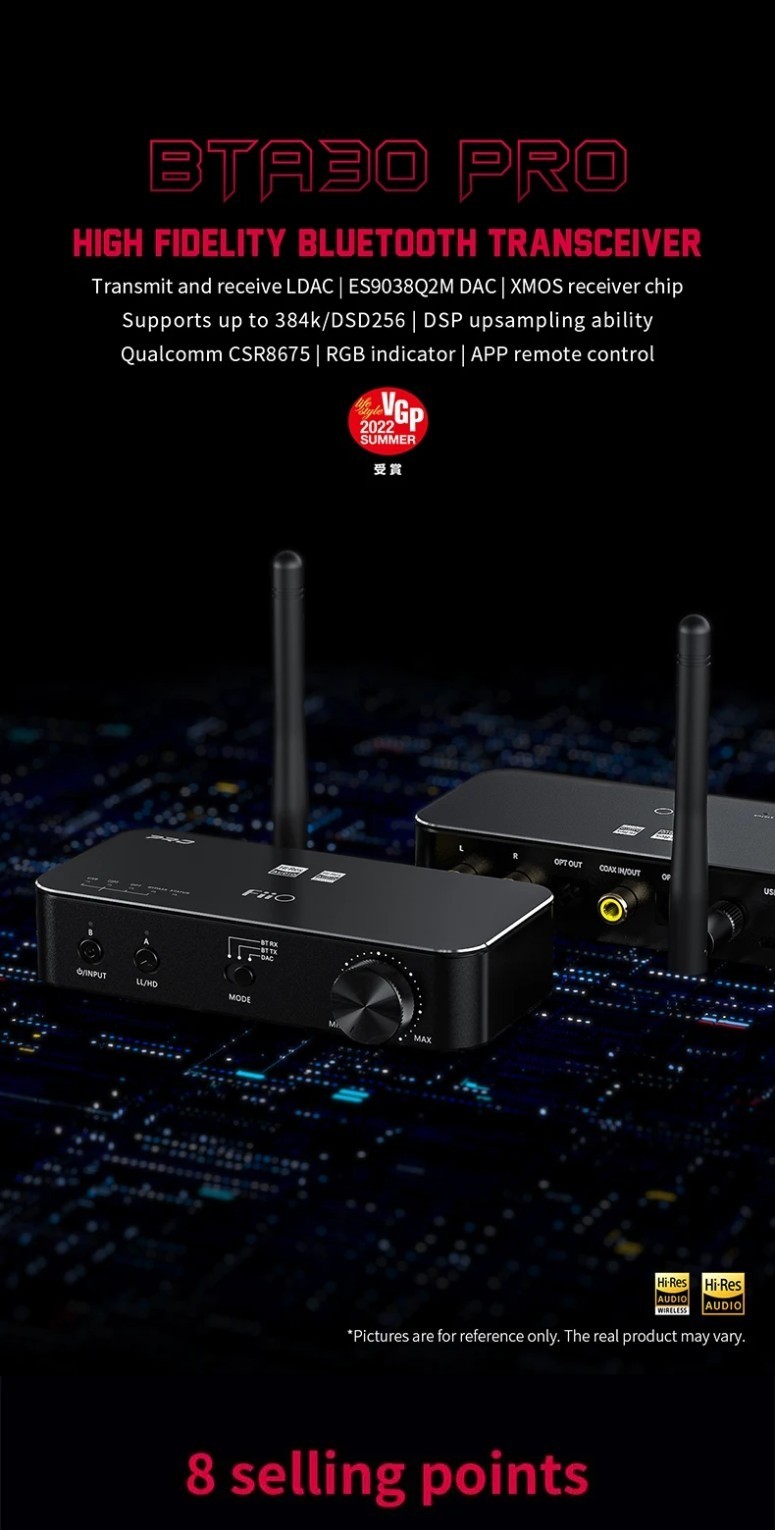

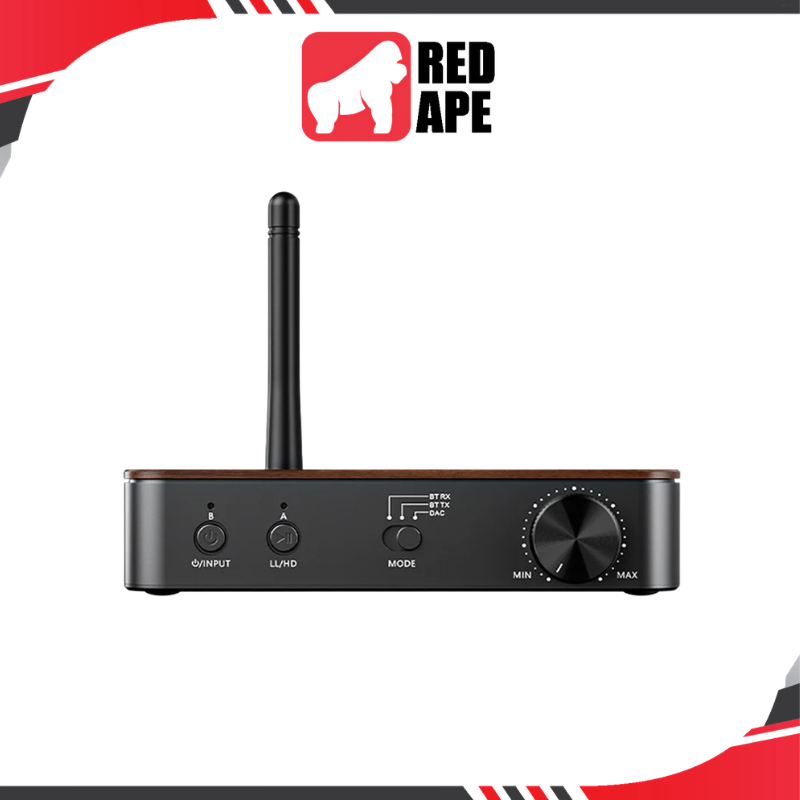

FiiO BTA30 Pro DAC and Amplifier: Bluetooth 5.0 Transceiver ES9038Q2M DAC LDAC Hi-Res USB/Optical/Coaxial Inputs DAC/AMP

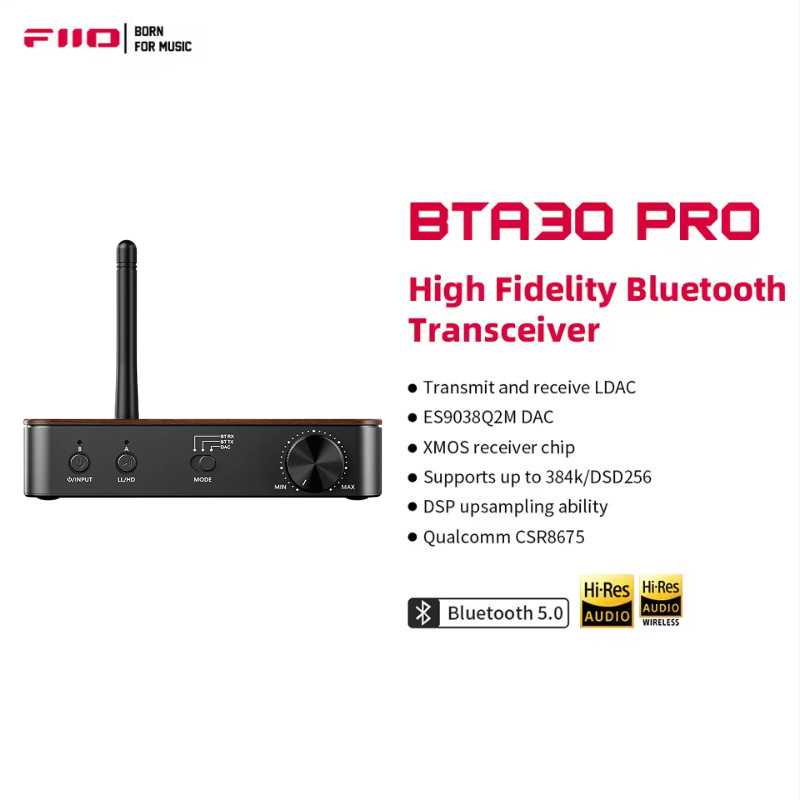

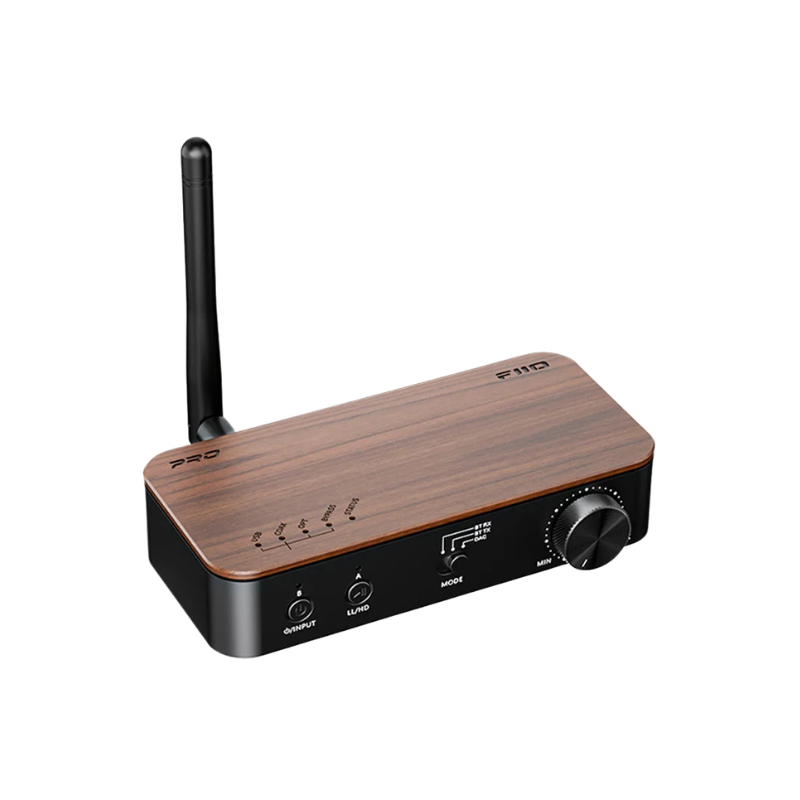

FiiO BTA30 Pro (Walnut)


Key Features:

Hi-Res Bluetooth Transceiver

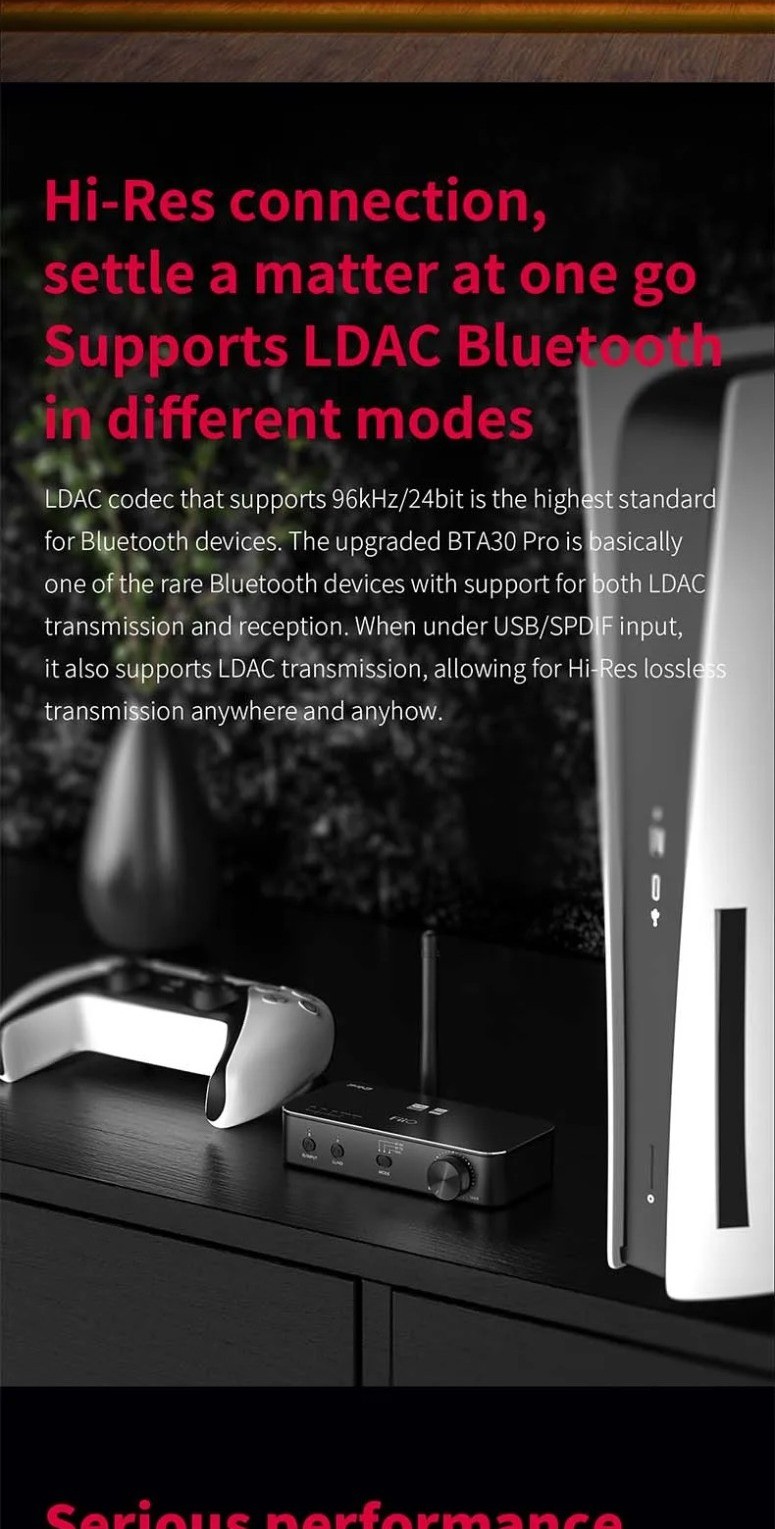

- Bi-Directional LDAC Support: Functions as both a receiver and transmitter for the high-resolution LDAC codec, enabling lossless-quality wireless audio in and out.
- Complete Bluetooth Codec Suite: Transmits SBC, aptX, aptX LL (low latency), aptX HD, and LDAC. Receives SBC, AAC, aptX, aptX HD, and LDAC.
- Dual Device Pairing: Supports simultaneous connection and memory for two Bluetooth devices, allowing easy switching between sources.

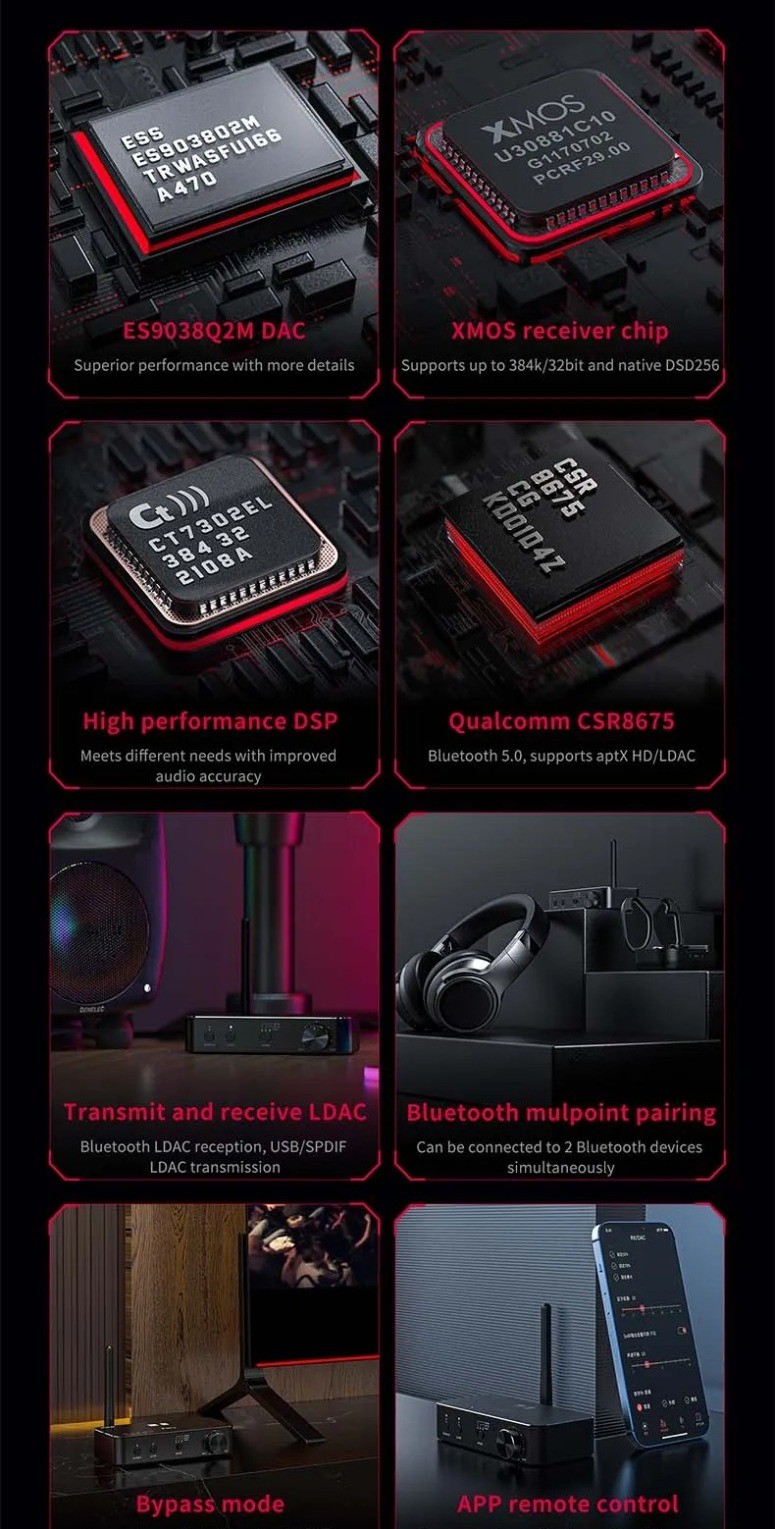

High-Performance ES9038Q2M DAC

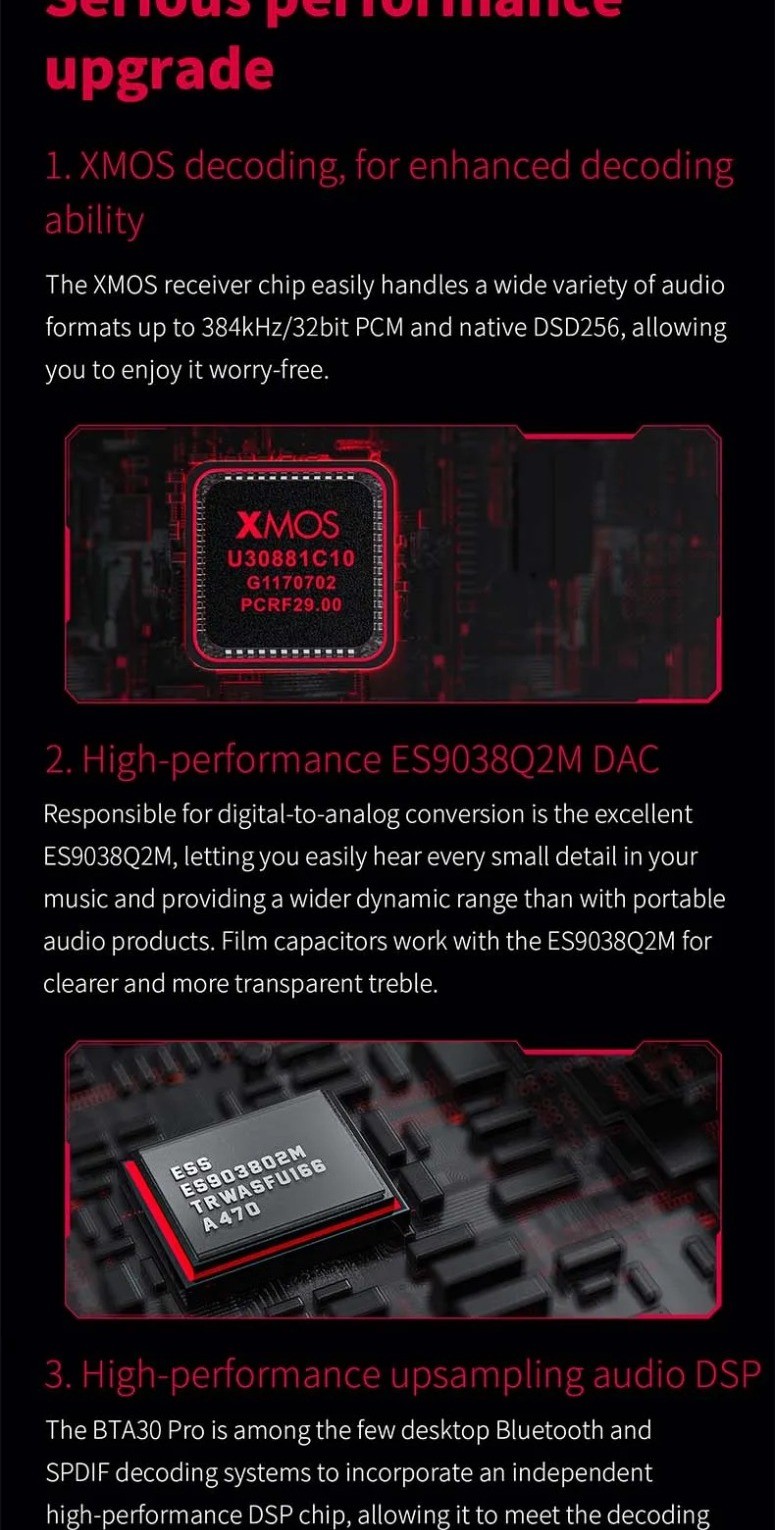

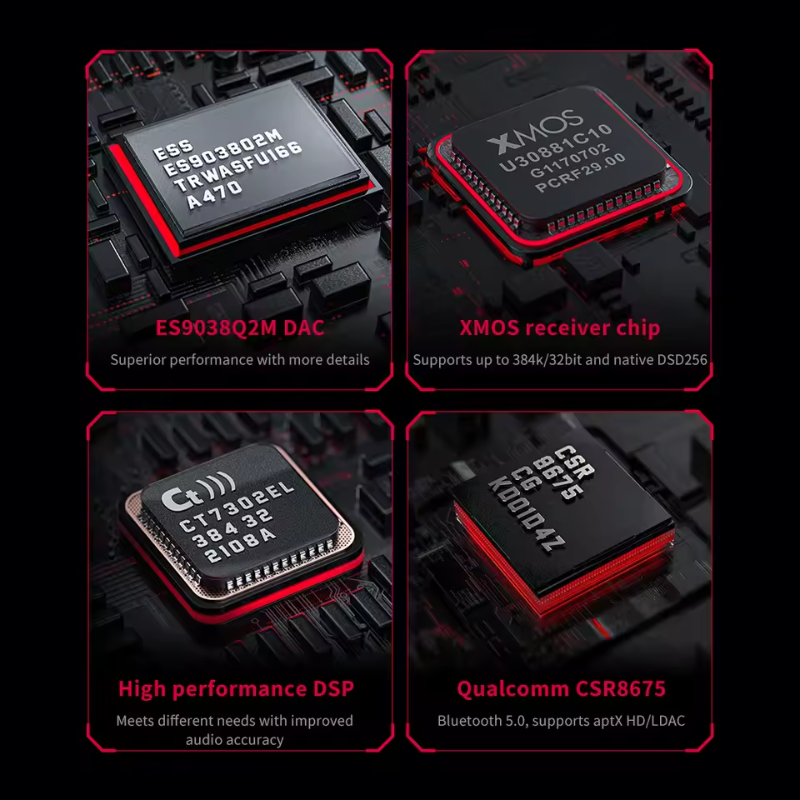

- Flagship ESS Sabre DAC: At its core is the ES9038Q2M DAC chip, providing a wide dynamic range, exceptional detail retrieval, and low distortion for high-fidelity sound.
- High-Resolution Decoding: The USB input supports playback up to 32-bit/384kHz PCM and native DSD256. Coaxial input supports up to 384kHz/24-bit.

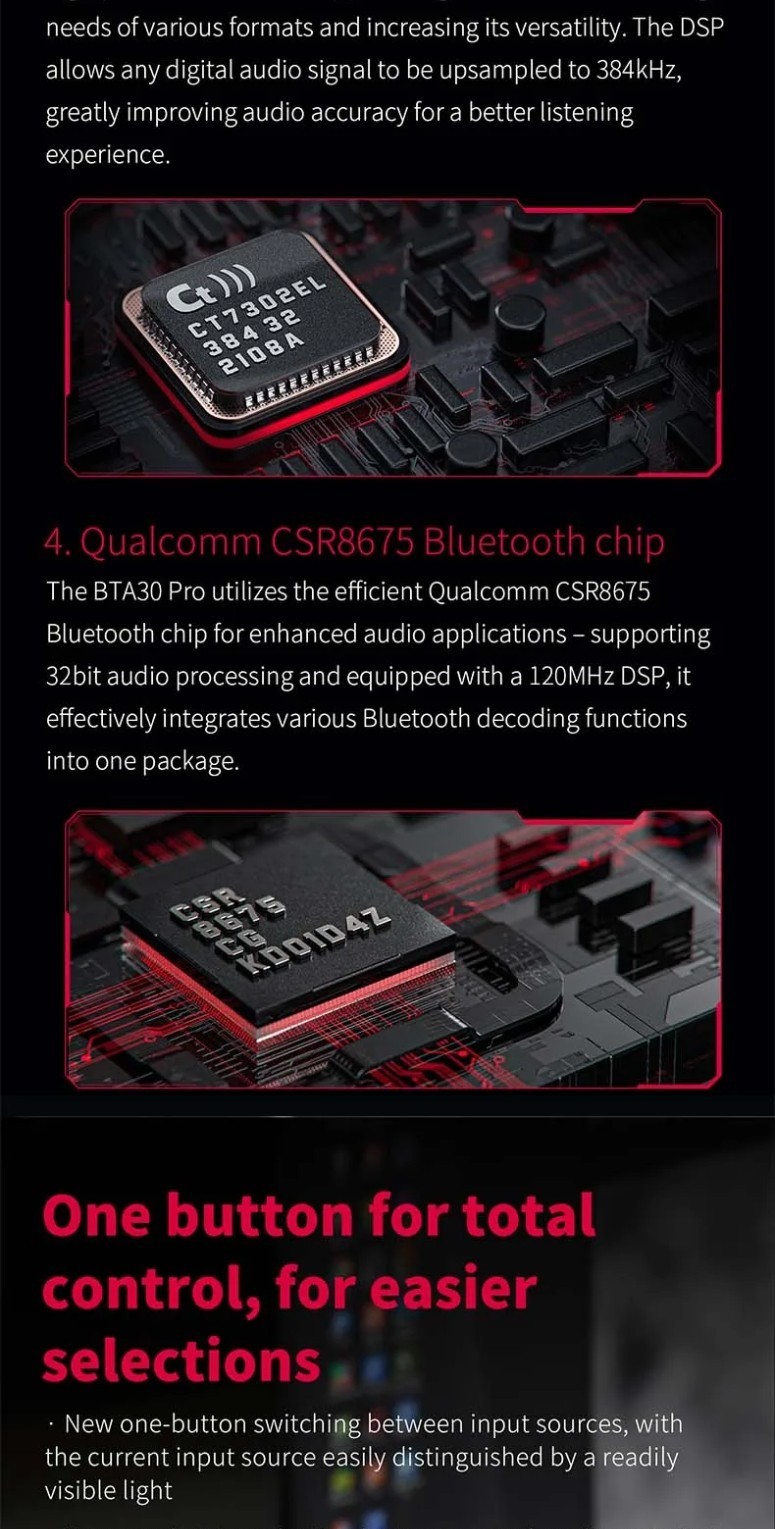

- Advanced DSP Upsampling: An independent DSP chip upsamples any digital audio signal to 384kHz for enhanced audio accuracy and clarity.

Versatile Connectivity Hub

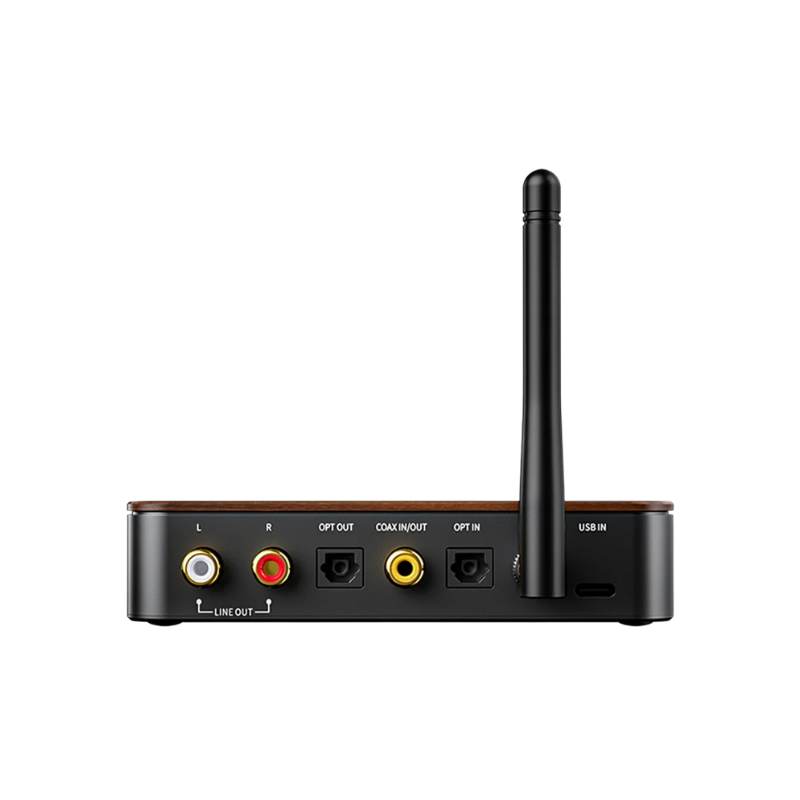

- Multi-Format Inputs: Connects to sources via USB Type-C, optical, and coaxial digital inputs.

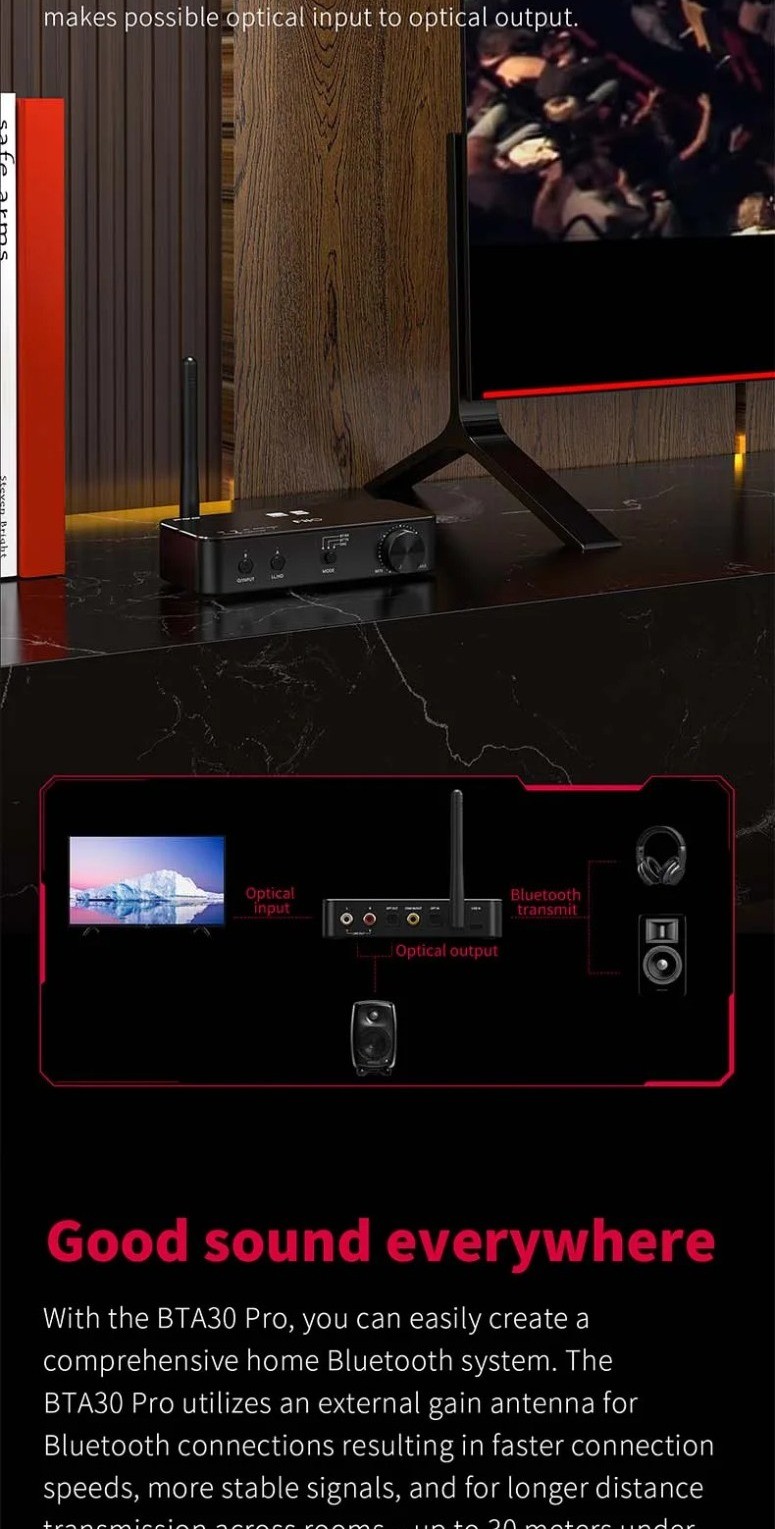

- Multi-Format Outputs: Delivers audio via analog RCA outputs, or digital optical and coaxial outputs.

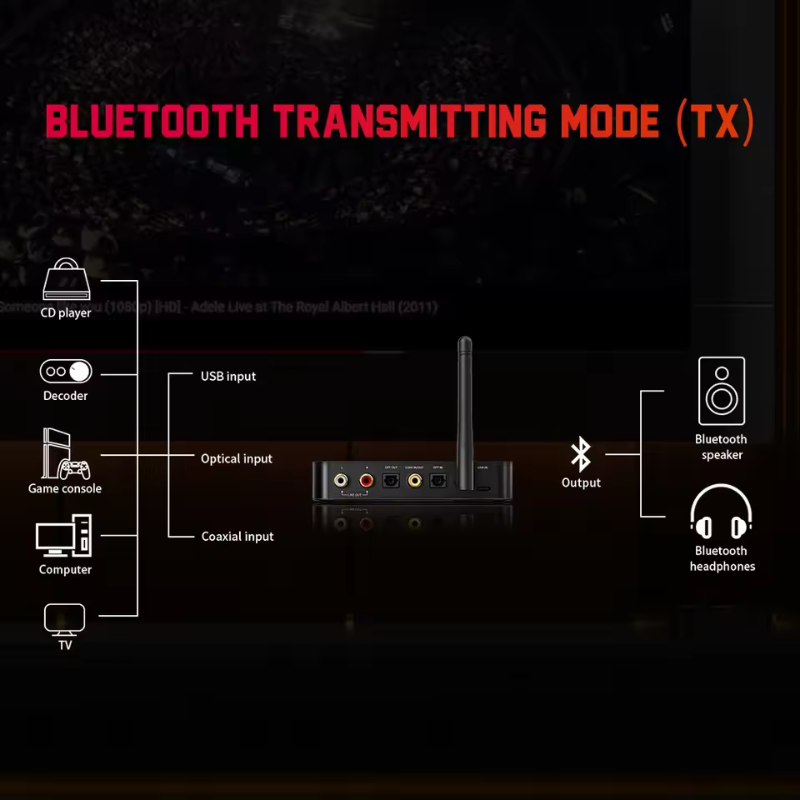

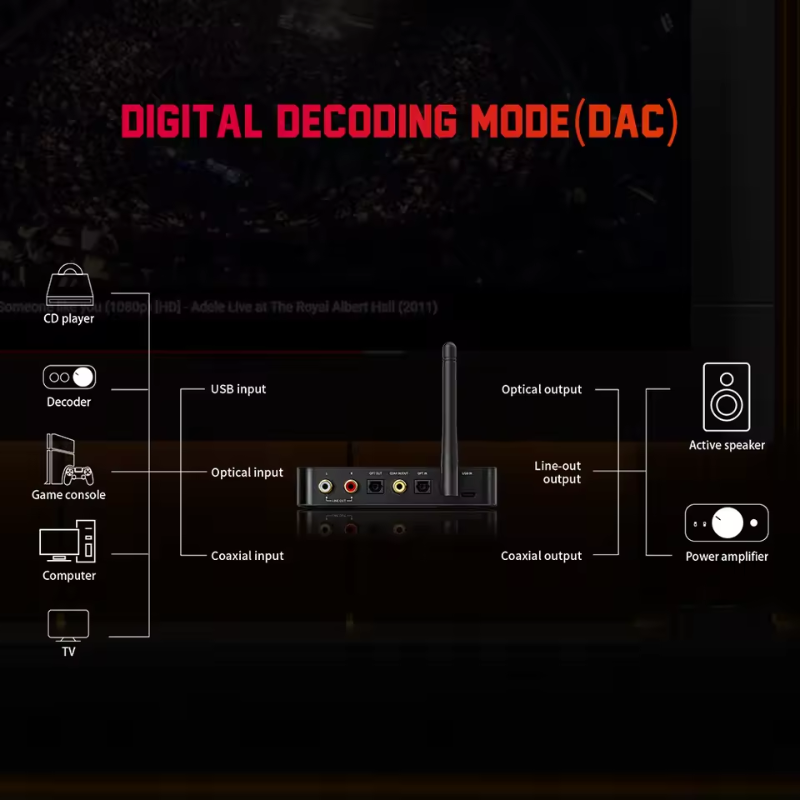

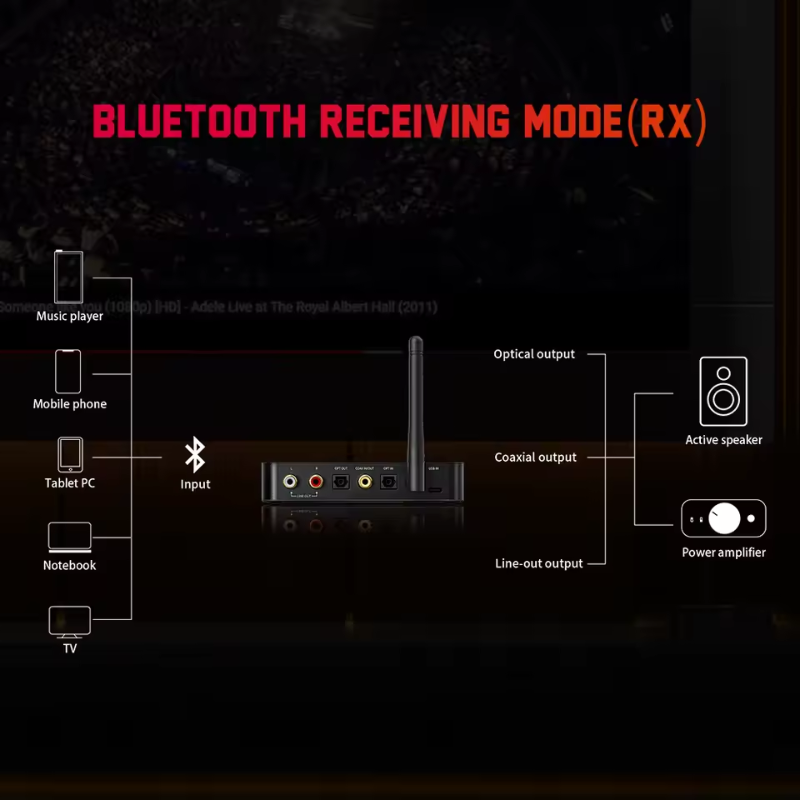

- Three Operating Modes: A physical switch selects between Bluetooth Transmitter, Bluetooth Receiver, and standalone DAC Mode.

User-Centric Design & Control
- Physical Controls & Indicators: Features dedicated buttons for input selection, Bluetooth pairing, and codec cycling, with clear LED indicators for status and active codec.
- App Remote Control: Can be fully managed via the FiiO Music app for remote adjustments and settings.
- Compact Aluminum Chassis: Housed in a robust, sleek aluminum alloy body measuring 120 x 55 x 25.8 mm.

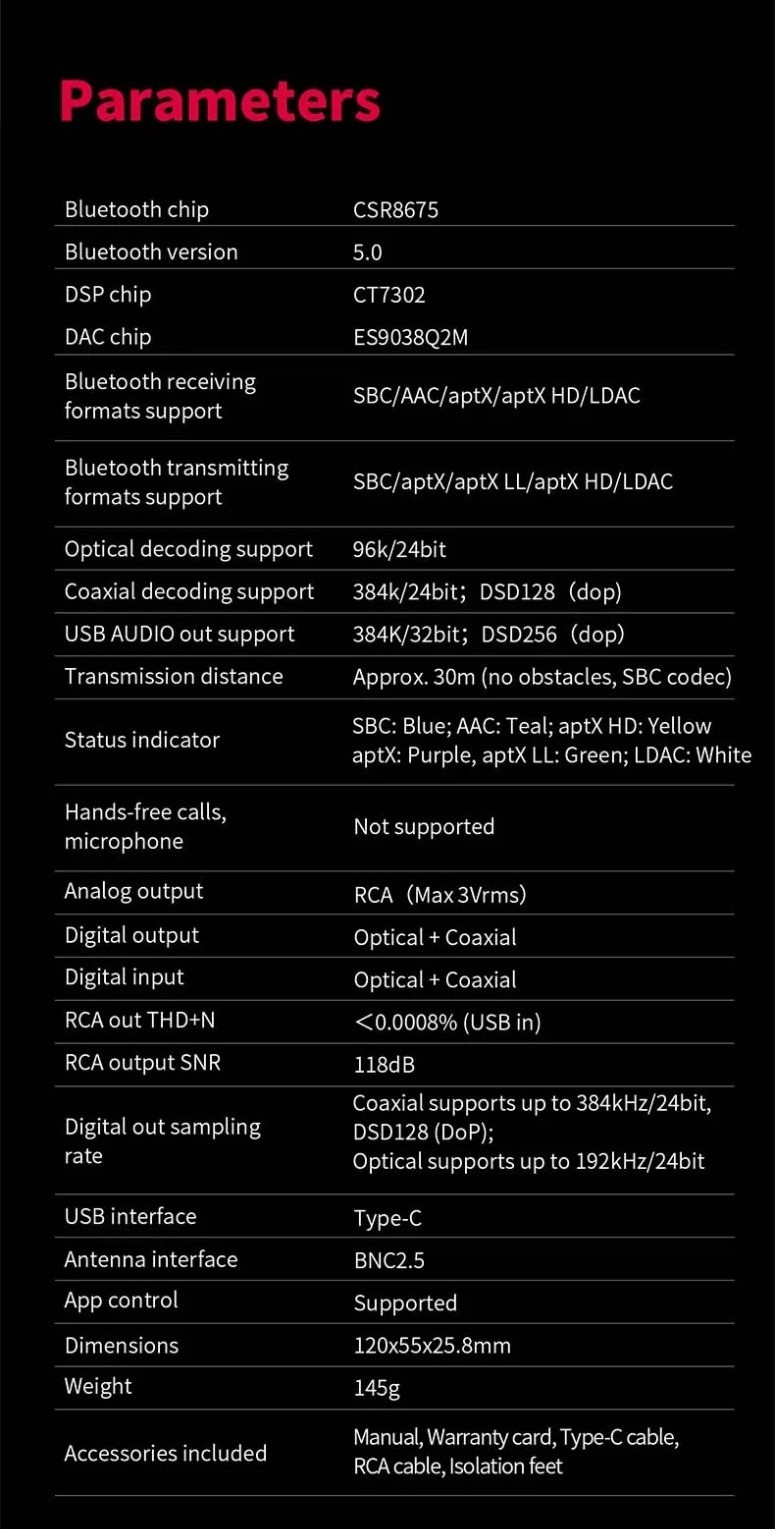

Technical Specifications:
- Bluetooth Version: 5.0
- DAC Chip: ESS Sabre ES9038Q2M
- USB Input: Up to 32-bit/384kHz PCM, DSD256
- Coaxial I/O: Up to 384kHz/24-bit
- Outputs: RCA (Analog), Optical, Coaxial (Digital)
- THD+N: <0.0008% (USB in)
- Dimensions: 120 x 55 x 25.8 mm
- Weight: 145g

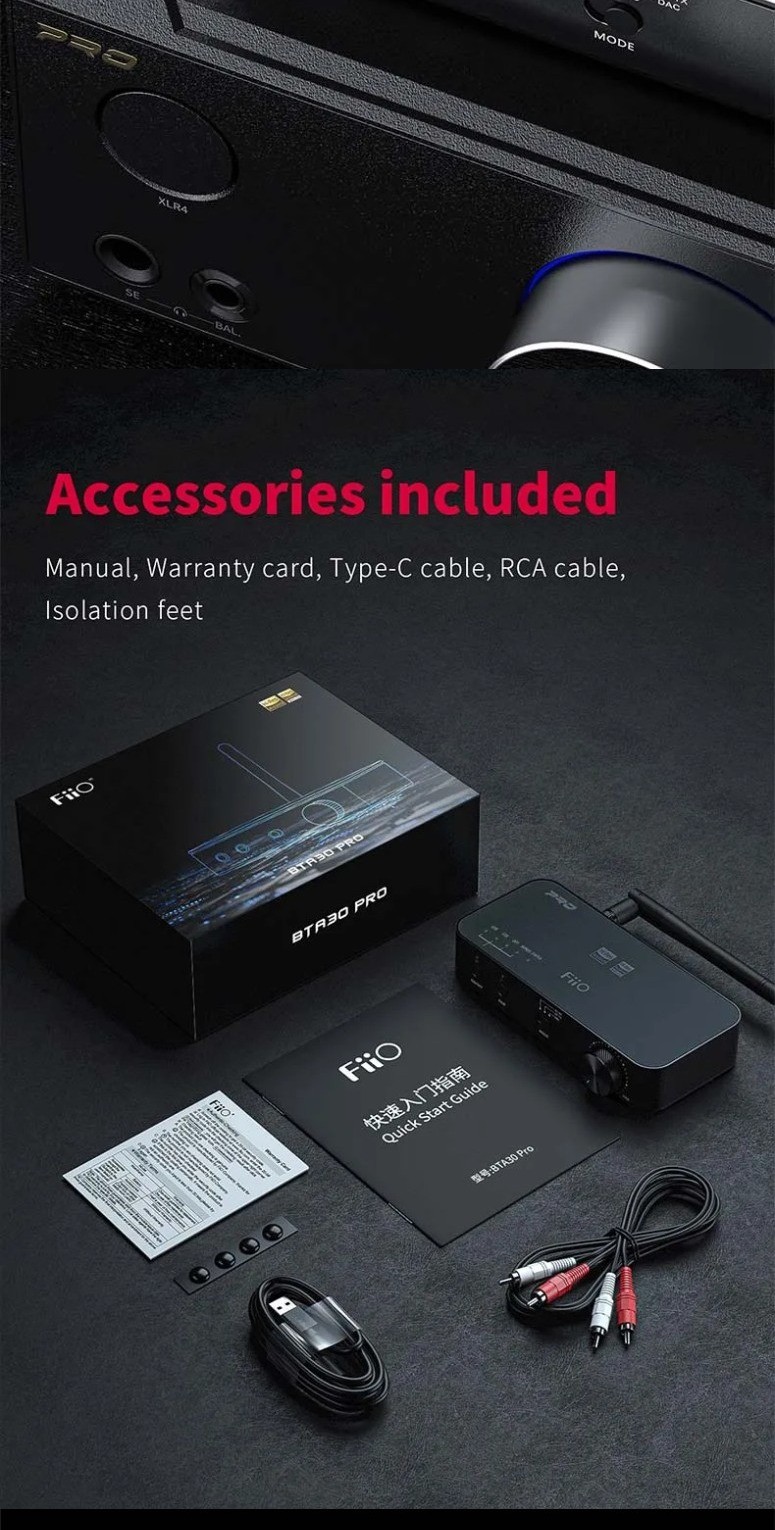

Package Includes:
- FiiO BTA30 Pro Unit
- USB Type-C Cable
- RCA Audio Cable
- Isolation Feet
- User Manual & Warranty Card
